What This SMP Connector Does in a Microwave Assembly
The snap-on fastening lets it mate quickly into a bulkhead or board-mount SMP jack — no coupling nut, just push until it clicks. Gold-plated beryllium copper on both the body and center contact keeps surface oxidation off the signal path through 100 mating cycles.
Cable Fit and What Ships in the Package

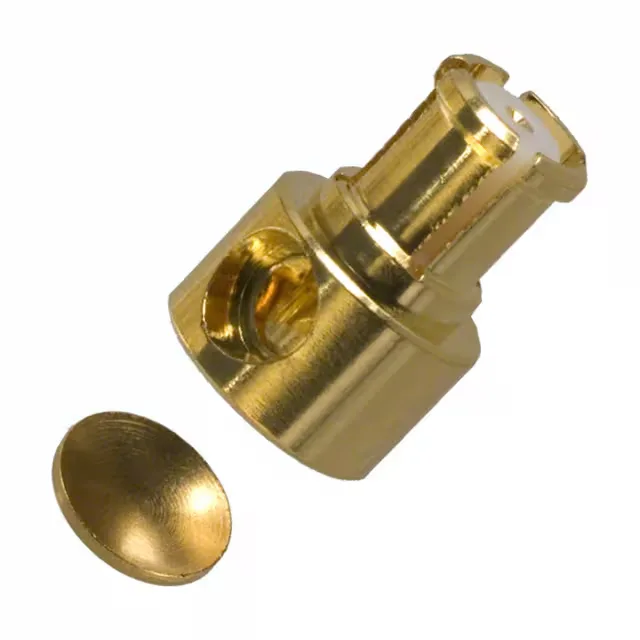

This connector is designed for 0.047" semi-rigid coax — the cable group is specified in the part definition, so the center conductor and dielectric dimensions match the inner bore of the plug. The package includes 2 pieces: the SMP connector body itself and a separate end cap. The end cap terminates the open end of the cable run, sealing the dielectric and providing a mechanical stop for the center conductor during solder termination. No separate crimp ring or ferrule is needed for this cable type — the solder shield termination does the mechanical and electrical bond.
