What This SMP Plug Kit Covers

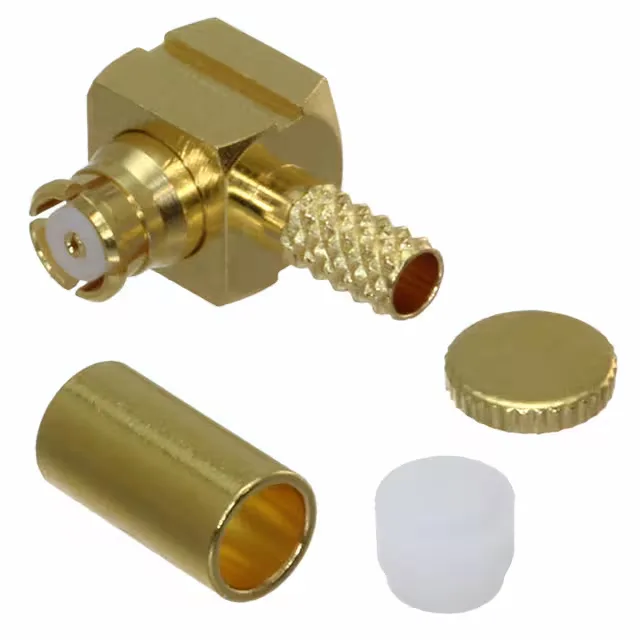

It ships as a complete termination kit: one connector body, one end cap, one crimp ferrule, and one insulator — everything needed to terminate one end of RG-174 or RG-316 coaxial cable.
This kit is sized specifically for cable groups RG-174 and RG-316. The centre contact solders to the signal conductor; the shield crimps under the ferrule. The included insulator centres the dielectric, and the end cap seals the back end. The crimp ferrule and insulator are matched to the 0.100-inch jacket diameter of these cables — no shimming or adapter rings needed.
RF Performance and Construction
The 50 Ohm impedance holds across the full DC-to-26.5 GHz band, making this connector suitable for microwave test, instrumentation, and compact RF module interconnects.
