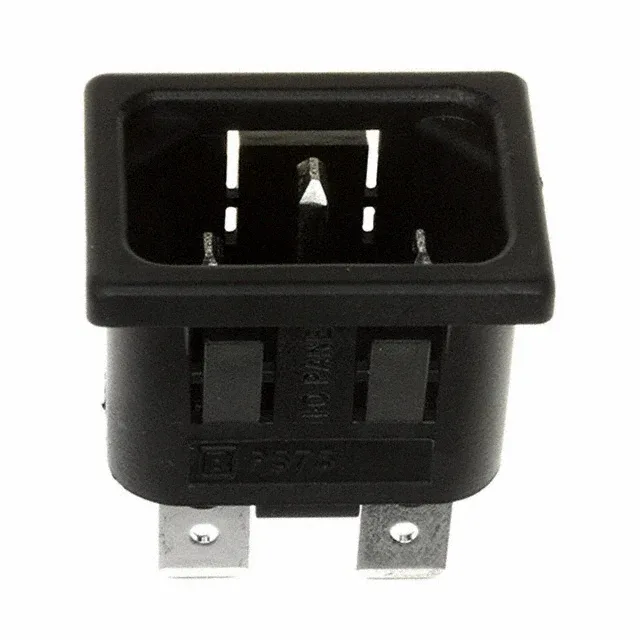

PX0575/15/PC
Bulgin
Rectangular - 27.40mm x 19.80mmSolderPX
Ref. price$3.7900
Lead time on requestGet quote ›
Bulgin PX05 Series
16 variants · Bulgin
About the Bulgin PX05 Series
The Bulgin PX05 Series series groups 16 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common accomodates a fuse of No, current rating - circuit breaker of - and current rating - filter of -. Variants differ by approval agency, connector type and current rating - appliance inlet, so you can match the exact approval agency your application requires using the selection guide below. All listed Bulgin PX05 Series part numbers are active and orderable.
Select a variant by
- Approval agency
- CCC, CSA, ENEC, UL, VDE · CSA, ENEC, RCM, UL, VDE · CSA, ENEC, UL, VDE · CSA, ENEC, UR, VDE · CSA, RCM, UL · CSA, UL
- Connector type
- Plug, Female Sockets · Receptacle, Male Blades
- Current rating - appliance inlet
- 10A · 16A
- Features
- - · Front or Rear Side Mount · Terminating Cover
- Mounting type
- Free Hanging (In-Line) · Free Hanging (In-Line), Right Angle · Panel Mount, Flange · Panel Mount, Flange; Through Hole, Right Angle · Panel Mount, Snap-In · Panel Mount, Snap-In; Through Hole, Right Angle
- Panel cutout
- - · Rectangular - 27.40mm x 19.80mm · Rectangular - 30.25mm x 22.48mm · Rectangular - 32.30mm x 24.30mm · Variable Size
- Panel thickness
- - · 0.039\" (1.00mm) · 0.059\" (1.50mm) · 0.079\" (2.00mm) · 0.126\" (3.20mm)
- Termination
- Quick Connect - 0.189\" (4.8mm) · Quick Connect - 0.250\" (6.3mm) · Screw · Solder
Shared specifications
- Accomodates a fuse
- No
- Current rating - circuit breaker
- -
- Current rating - filter
- -
- Filter type
- Unfiltered - Commercial
- Fuse holder, drawer
- -
- Ingress protection
- -
- Material flammability rating
- UL94 V-0
- Package
- Bulk
- Positions
- 3
- Switch features
- -
- Voltage rating - appliance inlet
- 250VAC
Variant comparison
| Parameter | PX0575/15/PC | PX0580/PC/7 | PX0588 | PX0575/10/63 | PX0575/15/48 | PX0575/20/63 |
|---|---|---|---|---|---|---|
| Approval agency | CCC, CSA, ENEC, UL, VDE | CSA, ENEC, UL, VDE | CSA, RCM, UL | CCC, CSA, ENEC, UL, VDE | CCC, CSA, ENEC, UL, VDE | CCC, CSA, ENEC, UL, VDE |
| Connector type | Receptacle, Male Blades | Receptacle, Male Blades | Plug, Female Sockets | Receptacle, Male Blades | Receptacle, Male Blades | Receptacle, Male Blades |
| Current rating - appliance inlet | 10A | 10A | 10A | 10A | 10A | 10A |
| Features | - | Terminating Cover | - | - | - | - |
| Mounting type | Panel Mount, Snap-In; Through Hole, Right Angle | Panel Mount, Flange; Through Hole, Right Angle | Free Hanging (In-Line), Right Angle | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Panel cutout | Rectangular - 27.40mm x 19.80mm | Rectangular - 30.25mm x 22.48mm | - | Rectangular - 27.40mm x 19.80mm | Rectangular - 27.40mm x 19.80mm | Rectangular - 27.40mm x 19.80mm |
| Panel thickness | 0.059\" (1.50mm) | 0.126\" (3.20mm) | - | 0.039\" (1.00mm) | 0.059\" (1.50mm) | 0.079\" (2.00mm) |
| Termination | Solder | Solder | Screw | Quick Connect - 0.250\" (6.3mm) | Quick Connect - 0.189\" (4.8mm) | Quick Connect - 0.250\" (6.3mm) |
Request a quote on any Bulgin PX05 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Bulgin PX05 Series variants differ?
- Bulgin PX05 Series part numbers differ by approval agency, connector type, current rating - appliance inlet and features. Use the selection guide above to pick by approval agency.
- How many Bulgin PX05 Series part numbers are listed?
- 16 Bulgin PX05 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Bulgin PX05 Series?
- Request a quote (RFQ) for any Bulgin PX05 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
