Molex — Card-Edge Connectors

Molex Card-Edge Connectors — 28 part numbers with specifications and datasheets. Filter by key specs and request a quote on IC Source Direct.

title

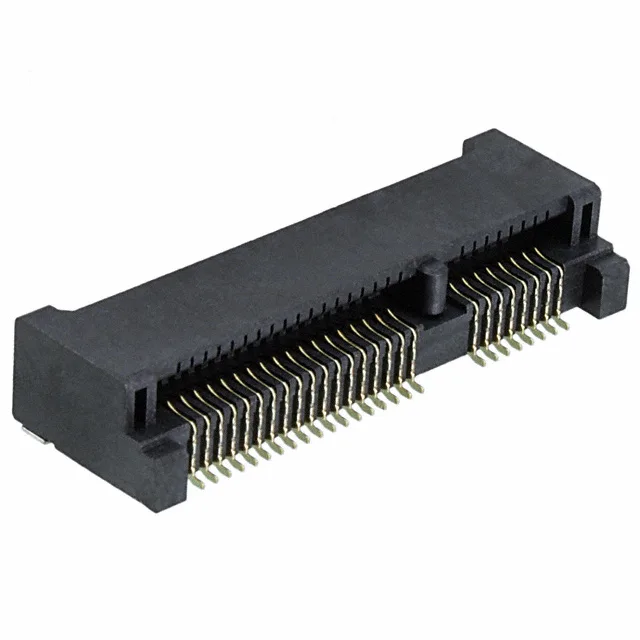

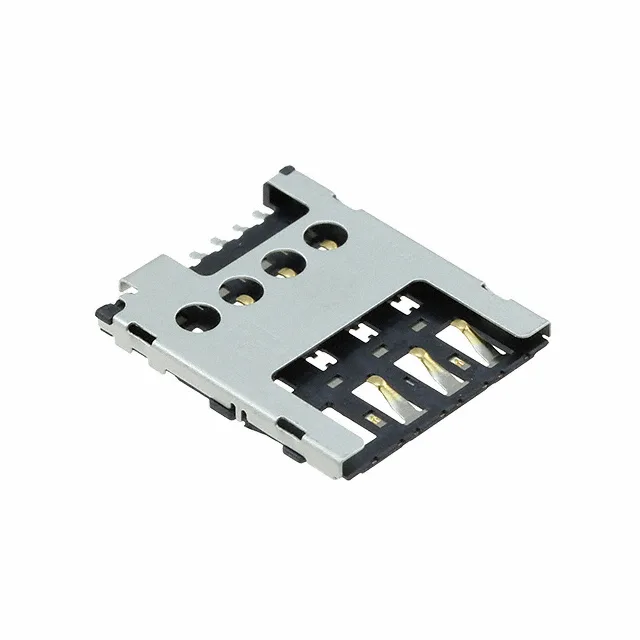

0475710001 · 0679105700 · 0786463001 · 0787231001
Base Product Number
047571 · 067910 · 078646 · 078723
Number of Positions
9 (8 + 1) · 52 · 6 · 36
Height Above Board
0.091" (2.30mm) · 0.057" (1.45mm) · 0.053" (1.35mm) · 0.015" (0.38mm)
Card Type

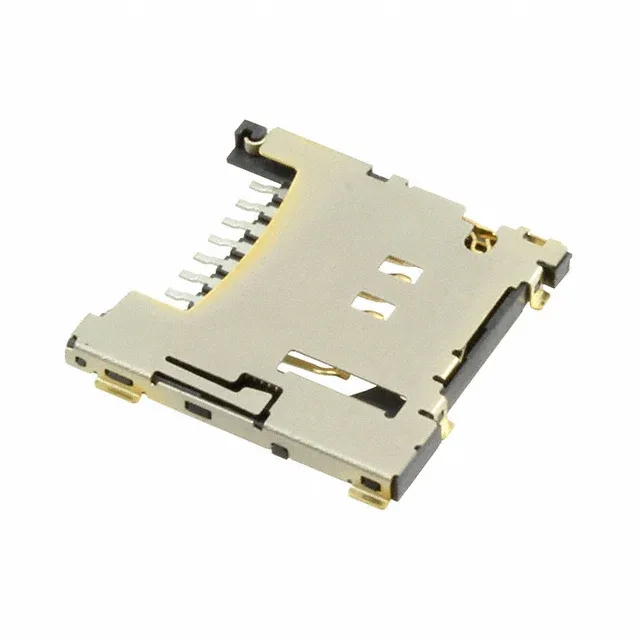

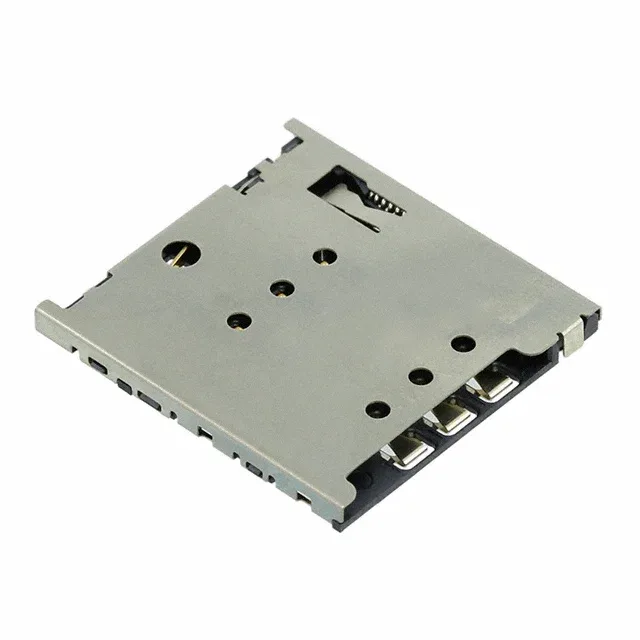

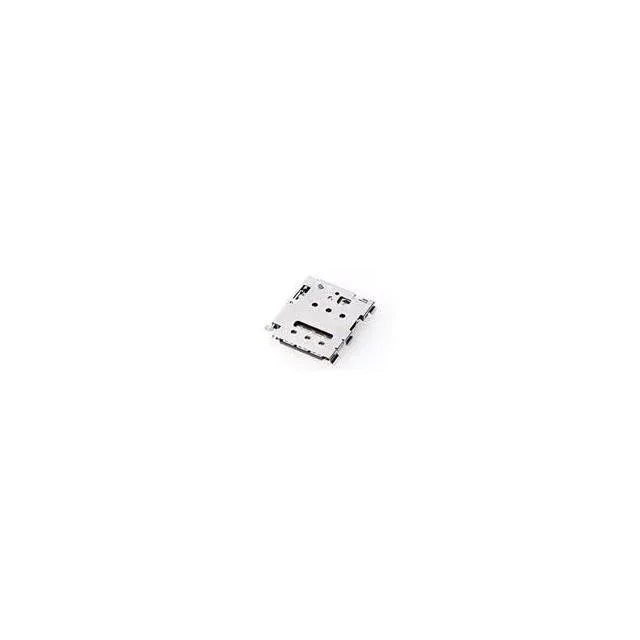

Secure Digital - microSD™ · PCI Express Mini Card · Micro SIM · PCI Express™
Contact Finish Thickness
30.0µin (0.76µm) · 10.0µin (0.25µm) · 15.0µin (0.38µm) · 20.0µin (0.51µm)
Package
Tray · Box · Tape & Reel (TR) Cut Tape (CT) · Bulk
Card Thickness
0.039" (1.00mm) · 0.062" (1.57mm)
