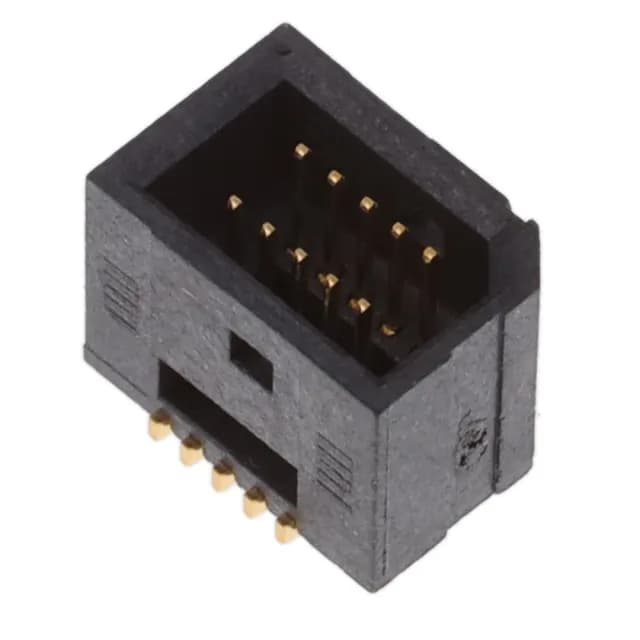

Samtec Inc. TEMS-105-02-03.0-H-D-K-TR
MPNTEMS-105-02-03.0-H-D-K-TR
Active
CONN HEADER SMD 10POS 0.8MM
$6.0300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTiger Eye™ TEMS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Tiger Eye™ TEMS |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 235VAC, 330VDC |
| Current rating | 2.6A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.212\" (5.38mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 6mm |
| Style | Board to Board |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.031\" (0.80mm) |
| Positions | 10 |
| Row spacing - mating | 0.063\" (1.60mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 3.00µin (0.076µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
