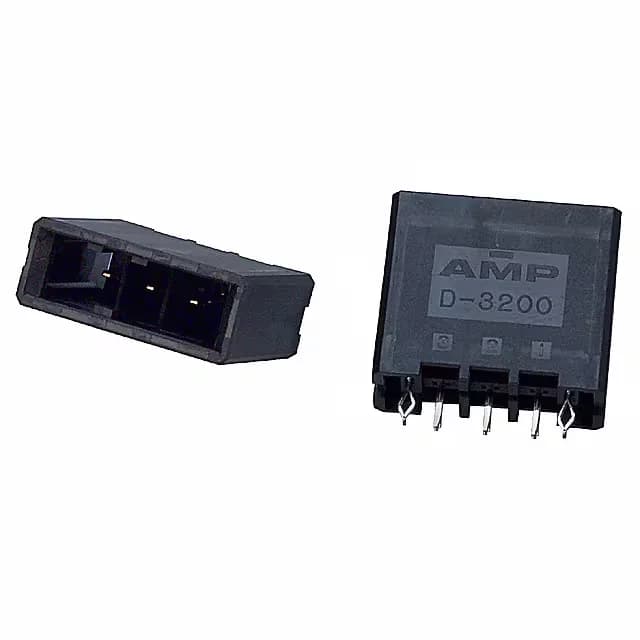

Dynamic D-3200 3-Position Header — Board Lock and 5.08mm Pitch
Mated Stack Height and Board-to-Board Fit
The mated stack height range of 31.00mm to 32.50mm defines the z-height budget for mezzanine or parallel-board assemblies. This range accommodates standard board spacings in industrial enclosures and power distribution panels, where clearance for heat sinks or cable routing is required. The through-hole termination with a 0.150" (3.81mm) post length provides a robust solder joint on standard 1.6mm PCBs, with enough length for wave solder fillet formation without bottom-side clearance issues.
