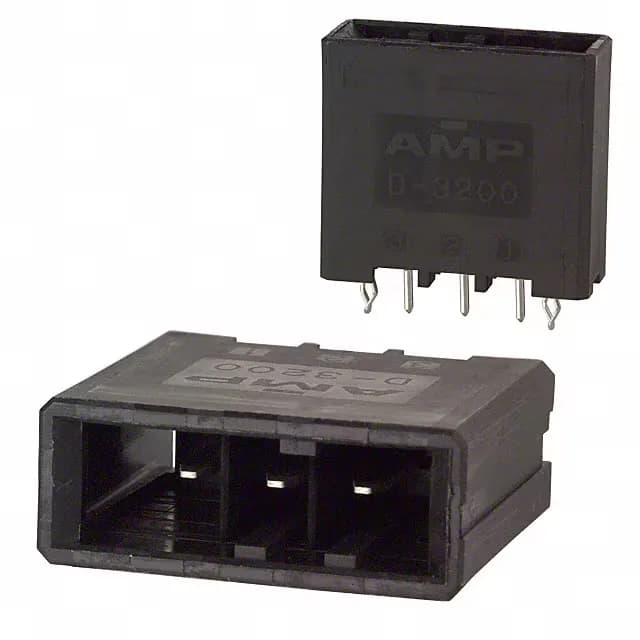

1-178136-5 TE Connectivity Dynamic D-3200 Header 3POS 5.08mm

MPN1-178136-5
Active

TE Connectivity AMP Connectors Dynamic D-3200 series, 1-178136-5, header, 3 positions, 5.08mm pitch, through hole, shrouded 4-wall, board lock, tin plating, UL94 V-0, -55°C~105°C, 600V rating, active production.

$1.8600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-178136-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesDynamic D-3200
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-178136-5 key specifications
ParameterValue
SeriesDynamic D-3200
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating600V
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.850\" (21.59mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Mated stacking heights31.00mm ~ 32.50mm

All specifications

1-178136-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows1
Pitch0.200\" (5.08mm)
Positions3
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingTin
Contact finish thickness - mating78.7µin (2.00µm)

Product details

What the 5.08mm Pitch and 3 Positions Mean for Your Layout

The 1-178136-5: The 5.08mm pitch is a wide spacing that suits power distribution or industrial signal routing — the board trace width between pads can be generous, reducing resistance and thermal rise. Three positions are enough for a single-phase power feed (line, neutral, ground) or a basic control signal set.

Mating Connector and Terminal Compatibility

This header mates with a Dynamic D-3200 series receptacle housing — the 5.08mm pitch and 3-position count must match the receptacle's circuit layout.

ROHS3 compliant — meets the EU RoHS directive for restricted substances.

Frequently asked questions

What is the mating connector for 1-178136-5?

The mating connector is a Dynamic D-3200 series receptacle housing with 3 positions and 5.08mm pitch. The shrouded 4-wall header design mates with the corresponding receptacle; the stacking height range is 31.00mm to 32.50mm.
