Pin Fit and Contact Design

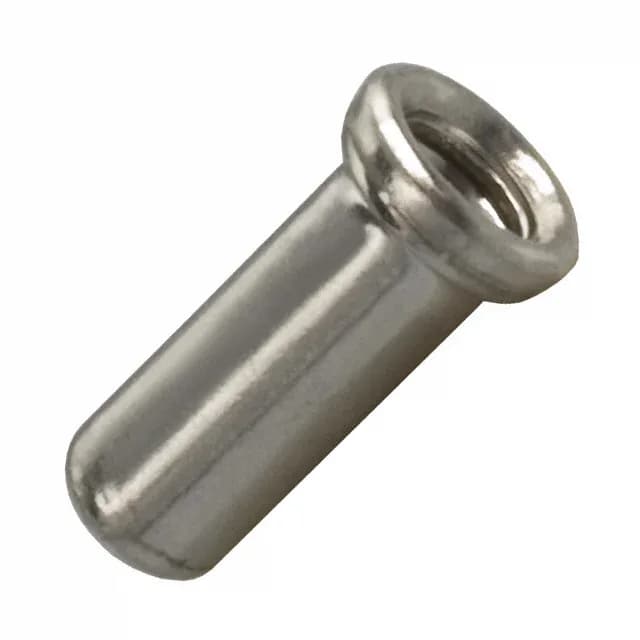

The 1-5380758-0: This PCB pin socket accepts pin diameters from 0.036" to 0.054" (0.91mm to 1.37mm), making it a versatile choice for standard round pins in that range. The contact is beryllium copper, a spring alloy that maintains consistent normal force over repeated insertions — important for a socket that must grip the pin securely across the full diameter range.
The mounting hole diameter range is 0.086" to 0.089" (2.18mm to 2.26mm). Socket depth is 0.145" (3.68mm), and overall length is 0.262" (6.65mm). The flange diameter is 0.125" (3.18mm). Board thickness accommodation is 0.156" (3.96mm).
