TE Connectivity AMP Connectors 1-88179-4 — FFC / FPC Housings

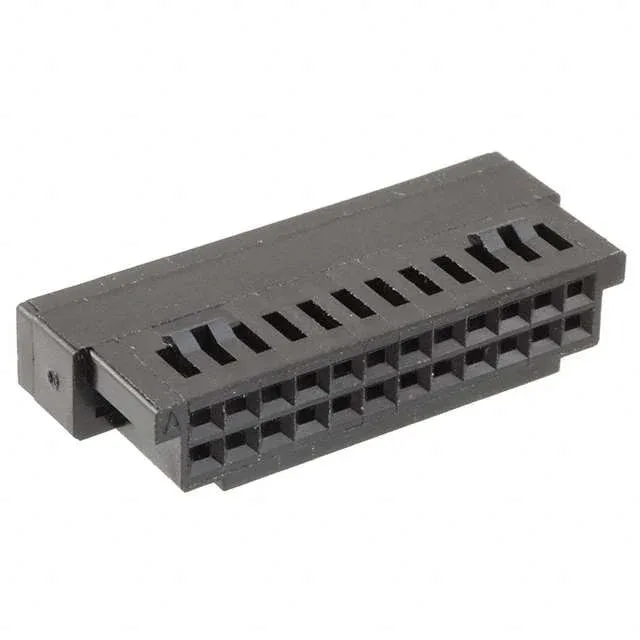

1-88179-4 TE Connectivity FFC Housing 24 Position 2.54mm

MPN1-88179-4
Active

TE Connectivity AMP Connectors 1-88179-4, FFC receptacle housing for female contacts, 24 positions, 0.100" (2.54mm) pitch, dual-row, 22-32 AWG, 1.5 A, 300 V, detent lock, UL94 V-0, black PA, contacts not included, bulk

$2.6800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-88179-4 specifications
ParameterValue
Connector typeHousing for Female Contacts
Flat flex typeFFC, Discrete Wire
Voltage rating300 V
Current rating1.5 A
Wire gauge22-32 AWG
Operating temperature-65°C ~ 105°C
Housing colorBlack
Housing materialPolyamide (PA), Nylon, Glass Filled
Material flammability ratingUL94 V-0
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesPositions Stamped
Rows2
Locking featureDetent Lock
FFC, FCB thickness0.015mm
Insulation diameter0.045\" ~ 0.069\" (1.14mm ~ 1.75mm)
Positions24

Product details

Housing for 24-position 2.54mm FFC — contacts sold separately

The 1-88179-4: It accepts 22-32 AWG discrete wire or FFC up to 0.015mm thick, with an insulation diameter range of 0.045" to 0.069" (1.14mm to 1.75mm). The housing is black glass-filled nylon (PA) rated UL94 V-0.

The 1.5 A per-contact rating is modest; if you load all 24 circuits near the 105°C upper limit, derate further. Wire gauge range 22-32 AWG covers most signal wiring. The insulation diameter cap of 0.069" (1.75mm) means heavier-jacketed wire may not seat fully in the contact cavity.

Contacts are not included.

Frequently asked questions

Does 1-88179-4 include contacts?

No. The wire gauge range is 22-32 AWG.

What is the pitch of 1-88179-4?

0.100" (2.54mm) pitch, dual-row, 24 positions total.

What is the wire gauge range for 1-88179-4?

22-32 AWG discrete wire, with an insulation diameter of 0.045" to 0.069" (1.14mm to 1.75mm).

What is the mating connector for 1-88179-4?

This is a receptacle housing for female contacts.
