TE Connectivity AMP Connectors 102154-1 — Pin Headers

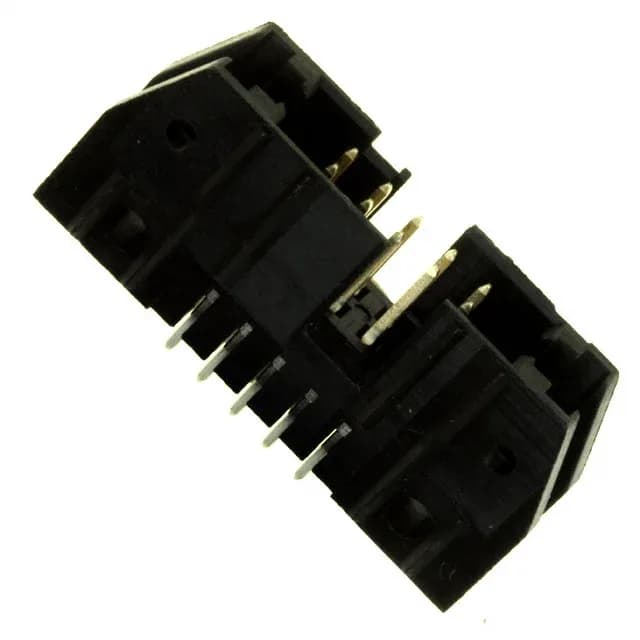

102154-1 TE Connectivity AMP-Latch Header 10POS 2.54mm

MPN102154-1
Active

TE Connectivity AMP-Latch series, Board to Cable/Wire, Header, 10 Positions, 0.100" (2.54mm) Pitch, Shrouded - 4 Wall, Through Hole, Solder, 1A per Contact

$1.5800Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

102154-1 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.549\" (13.94mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

102154-1 additional specifications
ParameterValue
PackageBulk
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.110\" (2.79mm)
Overall contact length0.639\" (16.23mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

This 102154-1 is a 10-position, dual-row, shrouded header from the TE AMP-Latch series, designed for board-to-cable/wire connections on a 0.100" (2.54mm) pitch. The header mates with AMP-Latch IDC receptacles and similar 0.100" pitch ribbon-cable sockets, using a push-pull fastening system. Keying slot and mounting flange on the 4-wall shroud prevent mis-mating and secure the connector pair against vibration in the harness.

Rated 1 A per contact across the -65°C to 105°C operating range, with a UL94 V-0 black insulation body.

Frequently asked questions

Is 102154-1 RoHS compliant?

No — this part is listed as RoHS non-compliant due to tin-lead contact finish. If RoHS compliance is required, check the 102154-1 datasheet for alternative plating options or contact TE for a lead-free variant.

What is the mating connector for 102154-1?

This header mates with AMP-Latch IDC receptacles on 0.100" pitch ribbon cable, such as TE 1-746285-0 or similar 10-position socket housings. The keying slot and mounting flange ensure correct orientation and retention.
