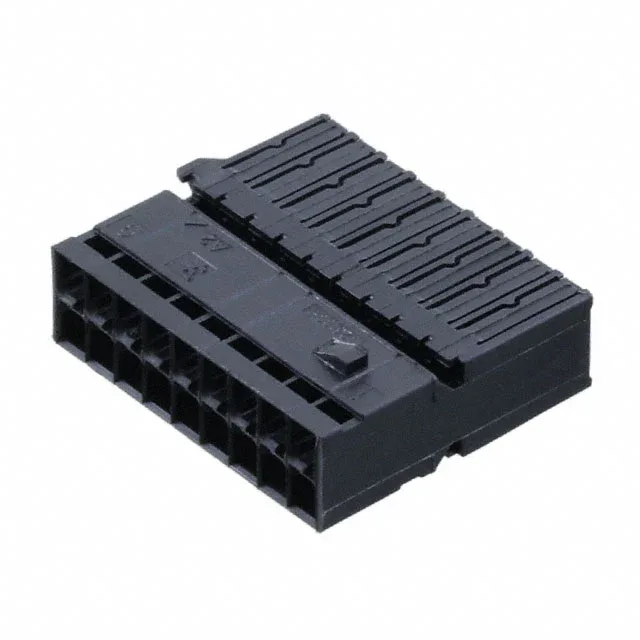

TE Connectivity 1326133-1 receptacle housing, 18 positions, 0.100" (2.54mm) pitch, dual-row, free-hanging, crimp termination, black nylon, RoHS.
| Parameter | Value |
|---|---|
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Row spacing | 0.232\" (5.90mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 18 |
The glass-filled nylon (polyamide) insulation is rated RoHS compliant, and the housing is black for visual identification on the harness.
The critical note on the listing is Contacts Not Included: you must order the matching TE female crimp terminals separately. The free-hanging mount means no panel cutout or board footprint is needed — the housing clips into the harness and the terminals crimp onto discrete wires.
The 1326133-1 accepts female socket crimp contacts designed for 0.100" (2.54mm) pitch, dual-row housings. Contacts are not included with this housing — order the matching TE crimp terminals separately.
