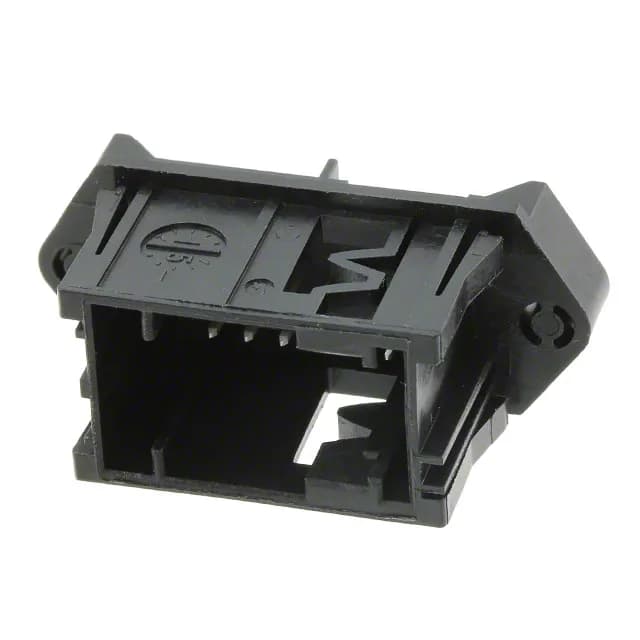

1379114-1 TE Connectivity Micro Quadlok Header 12 Pos 2.54mm

MPN1379114-1
Active

TE Connectivity AMP Connectors Micro Quadlok header, 1379114-1, 12 positions, 2 rows, 0.100" (2.54mm) pitch, shrouded 4-wall, friction lock, board lock, through-hole solder, tin-plated contacts, -40°C to 85°C, black SPS housing, bulk.

$1.8600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro Quadlok
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1379114-1 key specifications
ParameterValue
SeriesMicro Quadlok
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Operating temperature-40°C ~ 85°C
Insulation colorBlack
Insulation height0.799\" (20.30mm)
Insulation materialSyndiotactic Polystyrene (SPS), Glass Filled
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Lock, Mating Flange

All specifications

1379114-1 additional specifications
ParameterValue
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingTin

Product details

Board lock and mating flange for PCB retention

The mating flange gives the receptacle a positive stop, so the stack height is repeatable across the assembly line.

Sibling comparison: 1379114-3 vs 1355505-1

The 1379114-3 is identical in every spec except the insulation color is brown instead of black. If your harness drawing calls out brown for a specific circuit branch, that's the one; otherwise the black 1379114-1 is the standard pick. The 1355505-1 is a right-angle version of the same 12-position, 2-row header. If your PCB layout needs the cable to exit parallel to the board rather than straight up, the right-angle 1355505-1 saves the z-height budget.

Frequently asked questions

What is the pitch and position count of 1379114-1?

The pitch is 0.100" (2.54mm) and it has 12 positions arranged in 2 rows, with all positions loaded.

Is 1379114-1 a shrouded header?

Yes, it is a shrouded 4-wall header with a friction lock, providing mis-mate protection and vibration-resistant mating.
