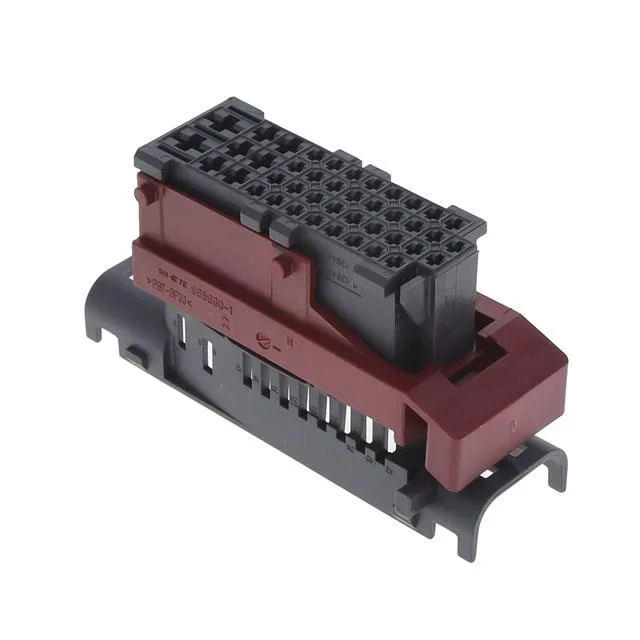

TE Connectivity 1394522-2 receptacle housing, 42 positions, 4 rows, free-hanging (in-line), crimp termination, PBT-GF, gray, -40°C to 85°C, RoHS3, contacts not included.
| Parameter | Value |
|---|---|
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -40°C ~ 85°C |
| Color | Gray |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Note | Contacts Not Included |
| Package | Bulk |
| Rows | 4 |
| Contact termination | Crimp |
| Positions | 42 |
The TE Connectivity 1394522-2 is a 42-position receptacle housing designed for free-hanging (in-line) harness applications.
The 4-row arrangement means this housing mates with a header that also has 4 rows and 42 positions. Confirm the mating header's row count and pinout before committing the BOM line.
No. The listing explicitly states 'Contacts Not Included'. You need to order the matching TE crimp socket terminals separately.
