TE Connectivity AMP Connectors 1438156-3 — Wire-to-Board Connectors

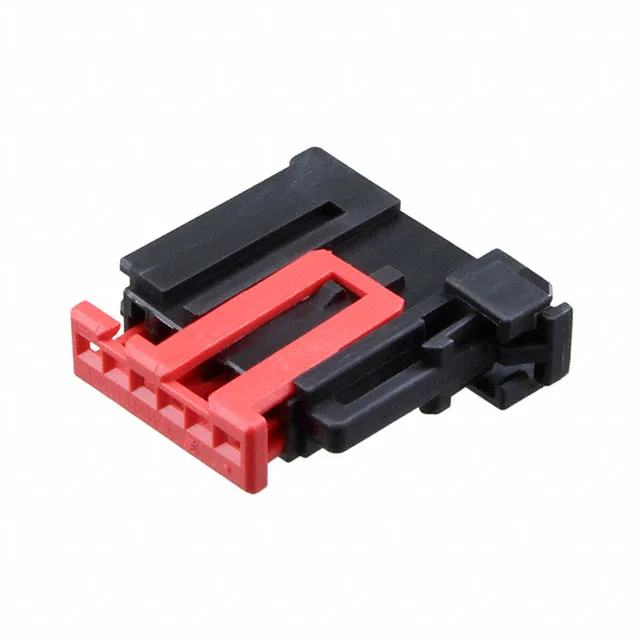

1438156-3 TE Connectivity Plug, 6 Pos, 2.54 mm, Last Buy

MPN1438156-3
Last Buy

TE Connectivity, plug connector, 1438156-3, 6 positions, 1 row, 0.100" (2.54 mm) pitch, crimp termination, free hanging, latch holder, black nylon housing, Last Buy.

$1.7000Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

1438156-3 specifications
ParameterValue
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Holder
Operating temperature-40°C ~ 100°C
ColorBlack
Insulation materialPolyamide (PA), Nylon, Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions6

Product details

The 1438156-3: It is a free-hanging (in-line) plug with a latch holder for positive retention when mated to a matching pin header.

What You Need to Know Before Ordering

Contacts are not included with this housing — you must order the matching female socket crimp terminals separately. The single-row, 6-position layout keeps the harness narrow; the latch holder adds vibration resistance over a simple friction lock. Mating half is a 6-position, 0.100-inch pitch pin header with a compatible latch ramp.

Frequently asked questions

Where can I buy 1438156-3 and how do I get a price?

1438156-3 is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time.

Is 1438156-3 obsolete or Last Time Buy?

1438156-3 is on Last Buy status. The manufacturer has discontinued it, and the remaining channel inventory is the final supply. No official replacement has been published.

Does 1438156-3 include contacts?

No. Contacts are not included with the 1438156-3 housing. You need to order the matching female socket crimp terminals separately.

What is the mating connector for 1438156-3?

It is a standard single-row plug-to-header interface.
