TE Connectivity AMP Connectors 1452327-1 — Connector Housings

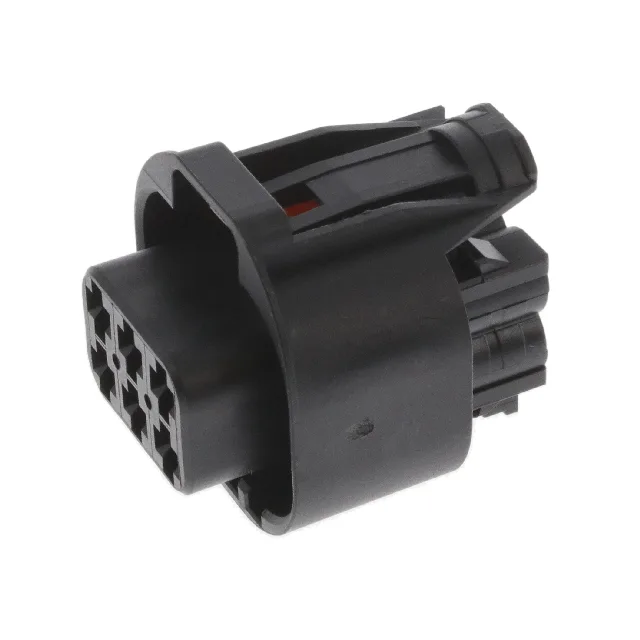

TE 1452327-1 Junior Power Timer Receptacle Housing, 6 Pos

MPN1452327-1
Active

TE Connectivity Junior Power Timer receptacle housing, 6 positions, 2 rows, 5.50mm pitch, free-hanging (in-line), crimp termination, latch holder, black PBT housing, contacts not included.

$1.4000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesJunior Power Timer
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1452327-1 specifications
ParameterValue
SeriesJunior Power Timer
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.217\" (5.50mm)
PackageBag
Row spacing0.177\" (4.50mm)
Rows2
Contact terminationCrimp
Positions6

Product details

6-Position Junior Power Timer Receptacle Housing — 5.50 mm Pitch

The 5.50 mm pitch and 4.50 mm row spacing provide generous creepage distances for the voltage levels typical of power distribution and signal circuits in vehicle body electronics, engine management, and auxiliary systems.

What the 5.50 mm Pitch and Latch Holder Mean for Your Harness Build

The 5.50 mm pitch on this housing is wider than many miniaturized automotive connectors, which means the cavity walls are thicker and the terminal insertion force per position is lower — the housing feeds cleaner on an automated assembly line and the operator gets better tactile feedback when seating each crimp terminal.

Frequently asked questions

Does the TE 1452327-1 include contacts?

No, the 1452327-1 receptacle housing ships without contacts. The listing explicitly notes 'Contacts Not Included'. You must order the matching Junior Power Timer male pin crimp terminals separately — these are the 5.50 mm pitch terminals designed for this housing series.

Is 1452327-1 compatible with Junior Power Timer male terminals?

Yes, the 1452327-1 is designed to accept Junior Power Timer male pin crimp terminals. The contact type is specified as Male Pin, and the housing cavity geometry matches the terminal family for the 5.50 mm pitch series. The terminals must be ordered separately and crimped onto the wire before insertion into the housing cavities.

What is the pitch of the 1452327-1 connector?

The 1452327-1 uses a 5.50 mm (0.217 inch) pitch between contact positions, with a row spacing of 4.50 mm (0.177 inch). This is a wider pitch than many miniaturized automotive connectors, providing good creepage distance and easier terminal insertion on the assembly line.
