TE Connectivity AMP Connectors 151321-4 — Quick-Disconnect Terminals

151321-4 TE Faston QC Receptacle/Tab 14-18 AWG 0.250"

MPN151321-4
Active

TE Connectivity AMP Faston quick-disconnect terminal, order code 151321-4, female and male, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 14-18 AWG, tin-plated brass contact, non-insulated, crimp termination, free hanging right-angle.

$0.7300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFaston
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

151321-4 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line), Right Angle
Terminal typeAngled - 90°, Flag, Stacked
Wire gauge14-18 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale and Male
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.300\" (7.62mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Insulation diameter0.120\" ~ 0.170\" (3.05mm ~ 4.32mm)

Product details

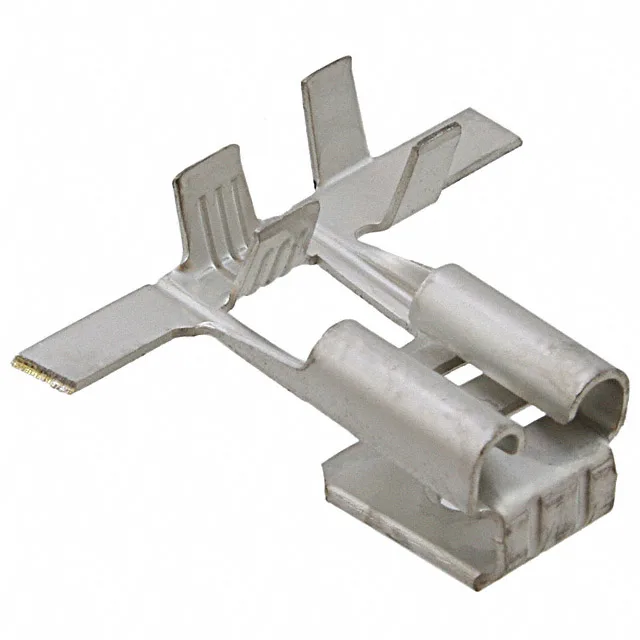

Faston flag terminal, dual-gender

The 151321-4 is a dual-gender quick-disconnect terminal in TE's Faston series — it serves as both a receptacle and tab on the same contact, accepting a 0.250" (6.35mm) wide mating tab. Rated for 14-18 AWG wire with a crimp termination, the tin-plated brass contact carries no insulation and mounts free-hanging with a right-angle flag orientation.

Same-tab-width peers in the field

The 151321-4's 0.250" tab width and 0.032" tab thickness match the Utilux-series 1-1627194-4, which is a female-only terminal for 15-18 AWG with a narrower insulation diameter range of 0.102" to 0.122" — the 151321-4 accepts a wider wire insulation (0.120" to 0.170") and offers a dual-gender contact. The Utilux 1-1659250-0 uses a 0.248" tab width and 0.031" tab thickness for 17-20 AWG wire — the 151321-4 covers a heavier wire range (14-18 AWG) with a slightly wider tab.

Frequently asked questions

What is the closest functional second-source for 151321-4?

The Utilux-series 1-1627194-4 shares the same 0.250" tab width and 0.032" tab thickness but is female-only and accepts 15-18 AWG with a narrower insulation range — the 151321-4 covers 14-18 AWG with a wider insulation diameter and a dual-gender contact.

What compliance documentation does TE provide for 151321-4?

The 151321-4 is ROHS3 compliant per the manufacturer's declaration — no UL or IEC listing is cited in the available records.
