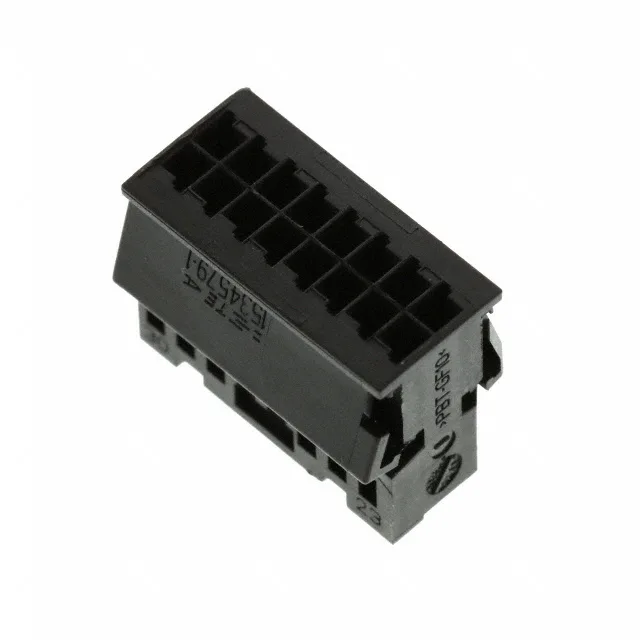

16-Circuit Micro Quadlok Receptacle Housing
The glass-filled PBT insulation material and -40°C to 120°C operating temperature range cover underhood thermal cycling and industrial cabinet heat rise without cracking or creep.
The 16 positions in 2 rows mean the housing occupies the same board footprint as an 8-position single-row header but in a more compact width — useful when routing multiple circuits through a single connector at a panel or bulkhead. The latch holder is the retention mechanism: it replaces the need for a secondary locking clip or screw, which saves assembly time and eliminates a loose part on the line.
