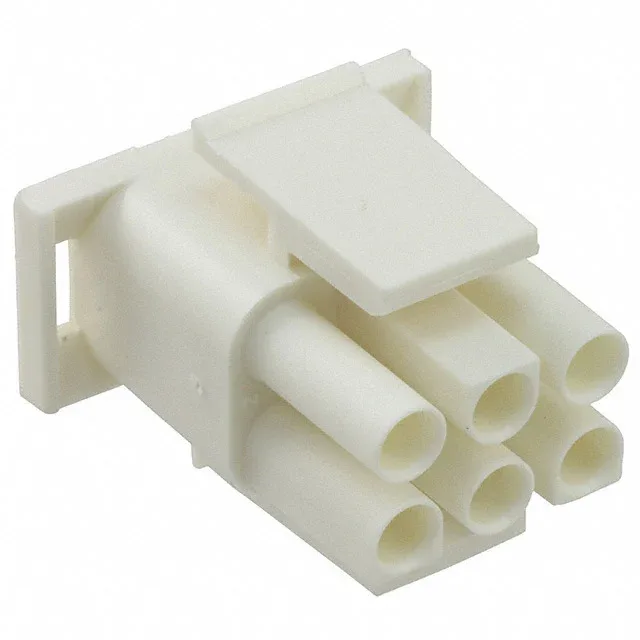

TE Connectivity Universal MATE-N-LOK plug housing, 1644055-1, 6 circuits in 2 rows, natural nylon 6, free-hanging inline crimp termination, -55 to 105°C operating range.
| Parameter | Value |
|---|---|
| Series | Universal MATE-N-LOK |
| Type | Male or Female |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Holder |
| Operating temperature | -55°C ~ 105°C |
| Color | Natural |
| Insulation material | Polyamide (PA6), Nylon 6 |
| Note | Contacts Not Included |
| Package | Bulk |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 6 |
The housing is a shell only — contacts are not included. Select crimp terminals based on wire gauge and current draw.
Listed as Active with RoHS compliance. No official second-source cross-reference in the Universal MATE-N-LOK family; the mating half is the corresponding receptacle housing.
The 1644055-1 accepts Universal MATE-N-LOK crimp terminals in either male or pin form. The exact terminal part number depends on your wire gauge and plating preference — tin for standard duty, gold for corrosive environments or higher mating cycles. The contacts are not included with the housing and must be ordered separately.
