TE Connectivity AMP Connectors 1719105-2 — Connector Housings

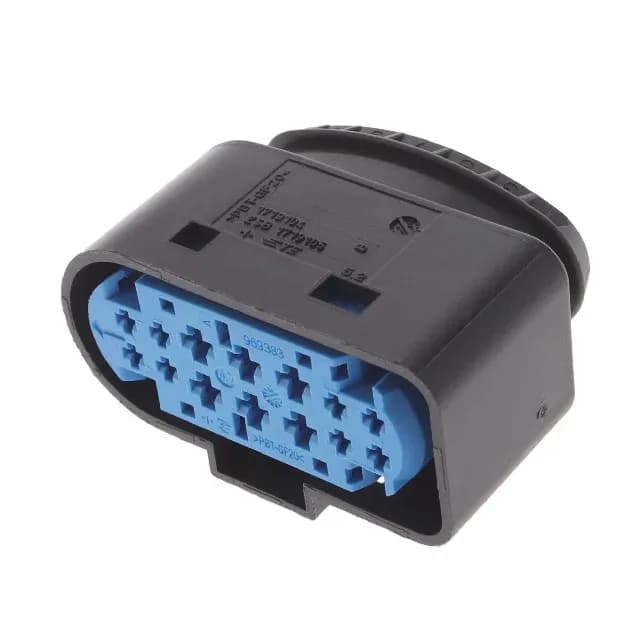

TE 1719105-2 Junior Power Timer Receptacle Housing, 14 Pos

MPN1719105-2
Active

TE Connectivity Junior Power Timer receptacle housing, 14 positions, 2 rows, blue, sealed, latch holder, free-hanging (in-line), crimp termination, -40°C to 130°C, contacts not included.

$2.2000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesJunior Power Timer
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1719105-2 specifications
ParameterValue
SeriesJunior Power Timer
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 130°C
ColorBlue
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
PackageBox
FeaturesSealed
Rows2
Contact terminationCrimp
Positions14

Product details

It carries a blue housing, a latch holder for vibration-resistant mating, and a free-hanging (in-line) mount style.

What the Sealed Housing and Latch Mean for the Build

The sealed feature means this housing, when mated with the correct seal-capable header and properly crimped terminals, keeps water and dust out of the contact interface — critical for a harness that runs along a frame rail or inside a wet engine bay. The latch holder locks the pair together so vibration from a running engine or a piece of industrial machinery won't shake the connection loose.

Frequently asked questions

Does 1719105-2 include contacts?

No, the 1719105-2 is a housing only — contacts are not included and must be ordered separately as crimp terminals.

Is 1719105-2 a sealed connector?

Yes, the 1719105-2 is a sealed receptacle housing, designed for use in wet or dusty environments when mated with the correct header and terminals.
