TE Connectivity AMP Connectors 173851-1 — Connector Housings

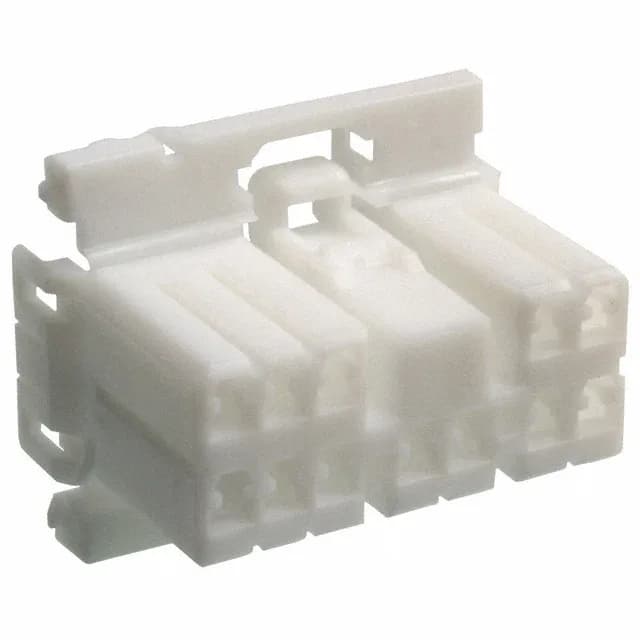

TE 173851-1 Multi-Lock Plug Housing, 12 Pos, 3.50mm

MPN173851-1
Active

TE Connectivity Multi-Lock plug housing, 173851-1, 12 circuits, 2 rows, 0.138" (3.50mm) pitch, free-hanging, crimp termination, latch holder, white PBT, -30°C to 105°C, contacts not included.

$1.4500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMulti-Lock
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

173851-1 specifications
ParameterValue
SeriesMulti-Lock
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Holder
Operating temperature-30°C ~ 105°C
ColorWhite
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.138\" (3.50mm)
PackageTray
Row spacing0.232\" (5.90mm)
Rows2
Contact terminationCrimp
Positions12

Product details

The TE Connectivity 173851-1 is a 12-circuit, 2-row plug housing from the Multi-Lock series, designed for free-hanging inline wire-to-wire or wire-to-board harness applications. It uses a 3.50 mm pitch and a 5.90 mm row spacing, with a latch holder for positive retention against vibration. This is a crimp-and-poke housing — the contacts are ordered separately.

The 3.50 mm pitch and 2-row layout are shared across the Multi-Lock series, so the mating receptacle must match both the pitch and the row count.

No official cross-reference or second-source is on record; the 1-1644055-3 is a 6-circuit plug in the same series but with a 6.35 mm pitch and different row spacing, so it is not a functional substitute for this 12-circuit, 3.50 mm pitch housing.

Frequently asked questions

What contacts fit 173851-1?

The 173851-1 housing accepts female socket contacts with a crimp termination. The specific TE crimp terminal part number depends on the wire gauge in your harness — the housing does not include contacts, so order the matching terminal separately.

Is 173851-1 RoHS compliant?

Yes, the 173851-1 is ROHS3 compliant.
