TE Connectivity AMP Connectors Multi-Lock Series, Board to Cable/Wire, 20 Positions, 2.50mm Pitch, Through Hole, Right Angle, Shrouded - 4 Wall, Locking Ramp, Tin Contacts
| Parameter | Value |
|---|---|
| Series | Multi-Lock |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Fastening type | Locking Ramp |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.658\" (16.71mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 20 |
| Row spacing - mating | 0.205\" (5.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.157\" (4.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.276\" (7.00mm) |

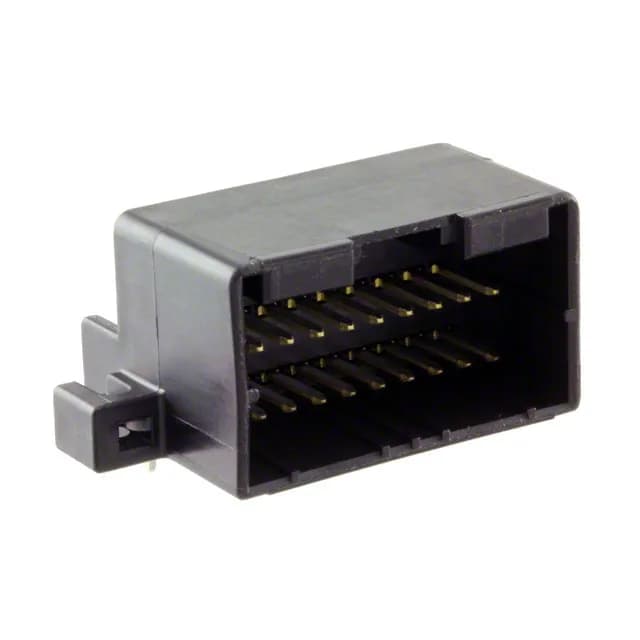

The 174055-2 is a 20-position, 2-row right-angle header from TE's Multi-Lock series, designed for board-to-cable/wire applications. The 2.50mm pitch and 5.20mm row spacing match the standard Multi-Lock receptacle footprint.
The 4-wall shroud protects the tab contacts from damage during blind mating.
