TE Connectivity AMP Connectors 174514-6 — Wire-to-Board Connectors

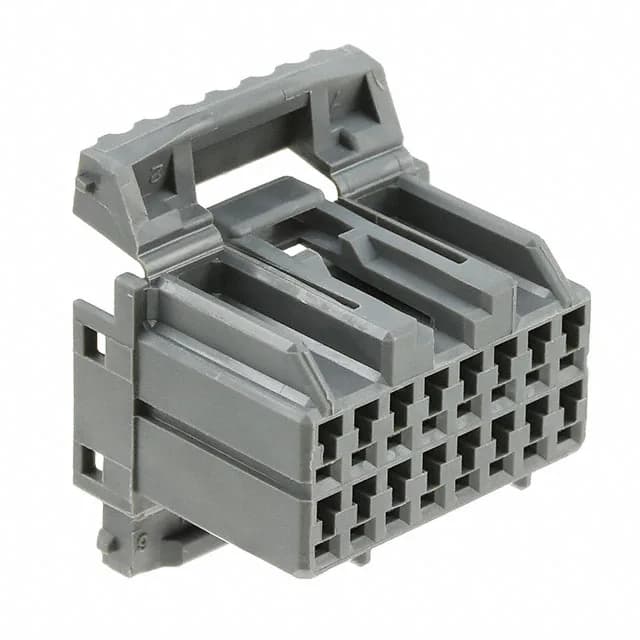

TE Connectivity 174514-6 Multi-Lock Plug, 16 Pos, Last Buy

MPN174514-6
Last Buy

TE Connectivity Multi-Lock series plug, 174514-6, 16 circuits, 2 rows, 0.118" (3.00mm) pitch, 0.205" (5.20mm) row spacing, free hanging (in-line) mount, crimp termination, gray PBT housing, latch holder fastening, contacts not included.

$1.7500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 174514-6 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

174514-6 specifications
ParameterValue
SeriesMulti-Lock
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Holder
Operating temperature-30°C ~ 105°C
ColorGray
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.118\" (3.00mm)
PackageBulk
Row spacing0.205\" (5.20mm)
Rows2
Contact terminationCrimp
Positions16

Product details

Multi-Lock Plug for In-Line Harness Assembly

The gray PBT housing carries two rows of female socket cavities on a 0.118" (3.00mm) pitch with a 0.205" (5.20mm) row spacing. A latch holder secures the mating interface against vibration in industrial and automotive environments.

Crimp Termination — Contacts Ordered Separately

The crimp termination style allows the harness builder to select wire gauge and plating grade (tin or gold) appropriate to the current and cycle-life requirements of the assembly. Confirm the correct terminal part number for the wire size before committing the BOM.

Frequently asked questions

Where can I buy 174514-6?

Submit an RFQ for the required quantity.
