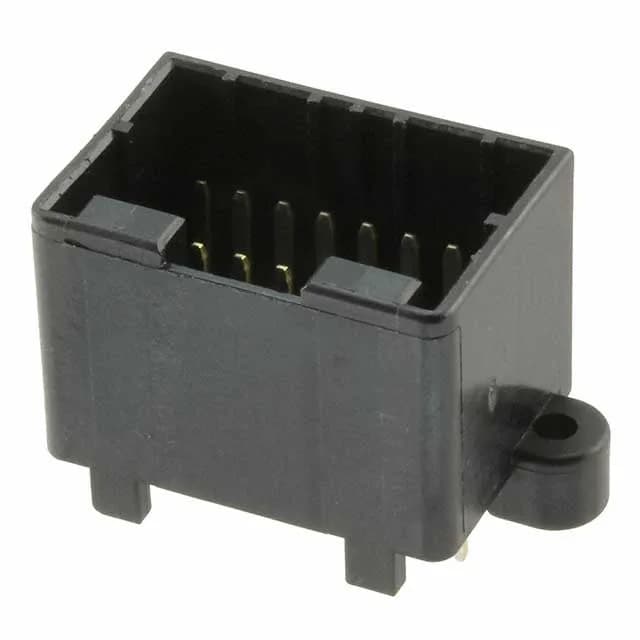

TE Connectivity AMP Connectors Multi-Lock series, 174975-2, board-to-cable/wire header, 16 positions, 2 rows, 0.098" (2.50mm) pitch, shrouded 4-wall, locking ramp, through-hole solder, tin contacts, -30°C to 105°C, tray.
| Parameter | Value |
|---|---|
| Series | Multi-Lock |
| Type | Tab |
| Mounting | Through Hole |
| Fastening type | Locking Ramp |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.756\" (19.20mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 16 |
| Row spacing - mating | 0.205\" (5.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.146\" (3.70mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.276\" (7.00mm) |
Its 0.098" (2.50mm) pitch and shrouded 4-wall housing with a locking ramp make it a fit for automotive and general-purpose applications where vibration resistance matters.
The 0.098" (2.50mm) mating pitch and 0.205" (5.20mm) row spacing set the PCB footprint. The through-hole terminals with 0.146" (3.70mm) post length suit standard plated-through-hole diameters.
The mating pitch is 0.098" (2.50mm), with a row spacing of 0.205" (5.20mm).
Yes, it is ROHS3 compliant.
This header mates with a Multi-Lock series receptacle housing that accepts tab contacts. The 2.50mm pitch and locking ramp are the key compatibility dimensions.
