Crimp termination, steel contact

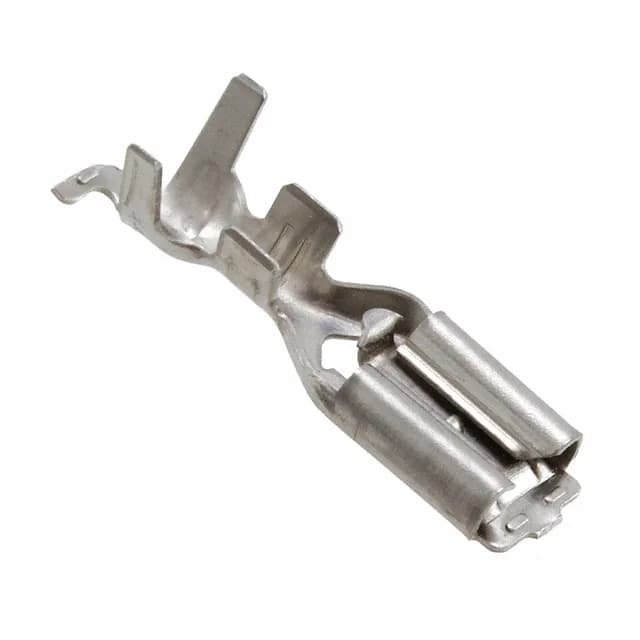

The 175032-1 is a non-insulated female quick-disconnect terminal from the Positive Lock EX series, accepting 20-26 AWG wire with a crimp termination for free-hanging inline use. The steel contact is rated for a 0.187" (4.75mm) tab width and 0.020" (0.51mm) tab thickness, with an overall length of 0.677" (17.20mm).
Same-series selection: wire gauge vs. contact material
The 175032-1 (20-26 AWG, steel contact) and the 175034-1 (14-20 AWG, steel contact) share the same 0.187" tab width, 0.677" length, and non-insulated crimp body — the wire gauge range is the axis that separates them, matching the terminal to the conductor size on the BOM. The 173722-1 (20-26 AWG, brass contact, tin plating) is the same gauge range as the 175032-1 but uses a brass contact with tin finish instead of steel — the material choice affects the contact resistance and corrosion profile, not the wire fit.
