TE Connectivity AMP Connectors 175362-1 — Connector Housings

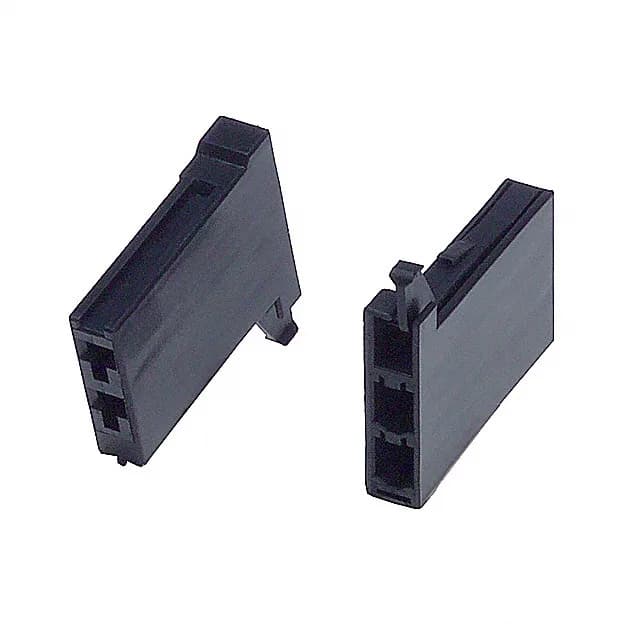

TE Dynamic D-3500 175362-1, 2-Pos 5.08mm Receptacle Housing

MPN175362-1
Active

TE Connectivity Dynamic D-3500 receptacle housing, 175362-1, 2 positions, 1 row, 5.08mm pitch, free-hanging, crimp termination, black thermoplastic, -55 to 105°C.

$0.8100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 175362-1 datasheet (PDF)
RoHSRoHS Compliant
SeriesDynamic D-3500
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

175362-1 specifications
ParameterValue
SeriesDynamic D-3500
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.200\" (5.08mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions2

Product details

2-Position Housing for the Dynamic D-3500 Line

The TE Connectivity 175362-1 is a 2-position receptacle housing from the Dynamic D-3500 series, built on a 5.08mm pitch in a single row.

This housing mates with the Dynamic D-3500 series pin headers — typically the 2-position through-hole or right-angle headers that share the same 5.08mm pitch. The keying features in the housing wall prevent mis-mating with headers of a different position count. For 20-16 AWG wire, the standard terminal is the TE 175360-1 (tin-plated) or 175360-2 (gold-plated) depending on the mating cycle and corrosion requirements of the application.

Frequently asked questions

What is the pitch and number of positions of 175362-1?

The 175362-1 is a 2-position receptacle housing with a 5.08mm pitch in a single row. The 5.08mm pitch provides adequate creepage distance for the voltage levels typical of the Dynamic D-3500 series.
