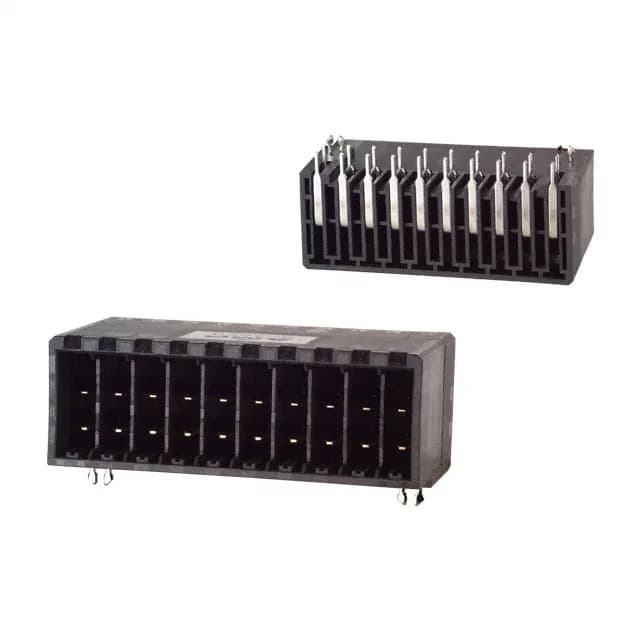

TE Connectivity AMP Connectors Dynamic D-3500 series, 175365-2, Board to Board or Cable header, 20 positions, 0.200" (5.08mm) pitch, right-angle through-hole, gold-plated mating contacts, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3500 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.774\" (19.67mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 20 |
| Row spacing - mating | 0.200\" (5.08mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 175365-2 is a 20-position, dual-row header from the TE Dynamic D-3500 series, pitched at 0.200" (5.08mm) between contacts.
Compared to the tin-plated sibling 1-1871673-2 (same series, 4 positions, 2.50mm pitch), the 175365-2 offers a wider pitch and higher position count for power distribution or signal bundles that need more copper per circuit.
Yes, it is ROHS3 Compliant.
