36 positions on 2.5mm pitch — board-to-cable header with locking ramp

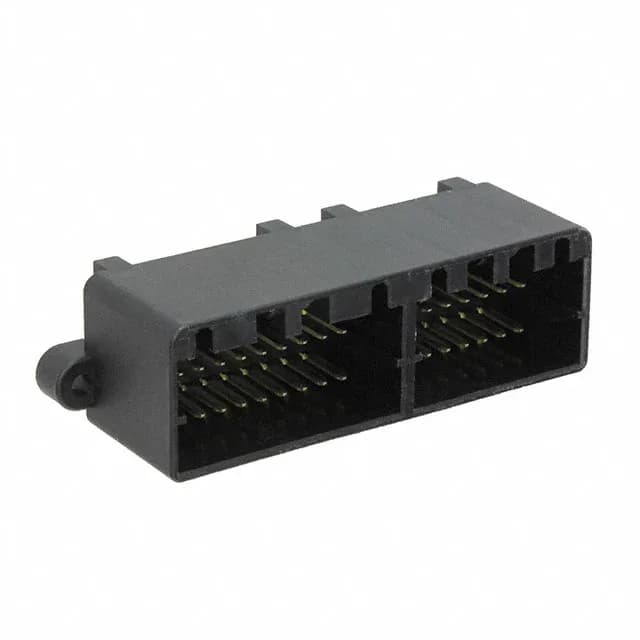

175977-2 is a TE Connectivity Multi-Lock series shrouded header for board-to-cable/wire applications. It delivers 36 positions across two rows at 0.098" (2.50mm) pitch, with a row spacing of 0.205" (5.20mm). The through-hole solder termination and locking ramp fastening make it a vibration-resistant choice for automotive and general-purpose harnesses.
Through-hole solder termination with tin-plated contacts
The contact length to mating is 0.276" (7.00mm), and the post length is 0.146" (3.70mm). The black PBT insulation includes a mounting flange for additional mechanical retention to the PCB. The header is loaded in all 36 positions.
