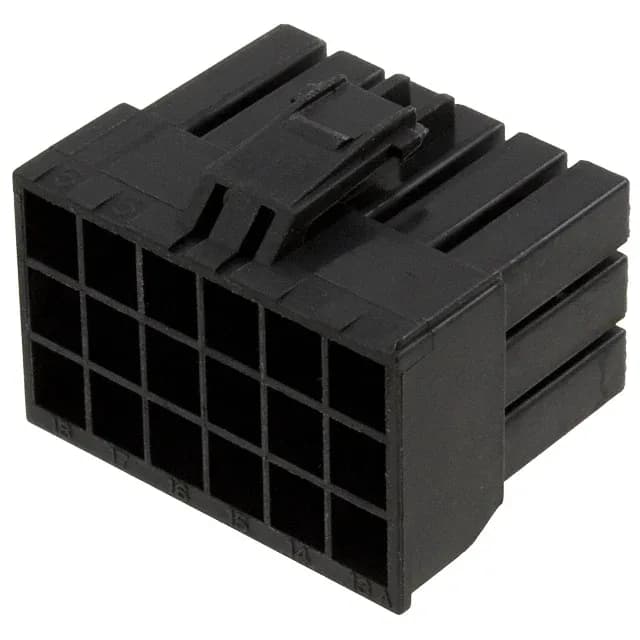

TE Connectivity AMP Connectors Universal Power series, 176280-9, 18-position plug housing, 3 rows, 0.156" (3.96mm) pitch, latch lock, free hanging, black PA66, contacts not included.
| Parameter | Value |
|---|---|
| Series | Universal Power |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Lock |
| Operating temperature | -30°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.156\" (3.96mm) |
| Package | Bulk |
| Row spacing | 0.181\" (4.60mm) |
| Rows | 3 |
| Contact termination | Crimp |
| Positions | 18 |
The 176280-9 is an 18-position plug housing from TE's Universal Power series, arranged in three rows with a 0.156" (3.96mm) pitch.
The 0.156" (3.96mm) pitch and 0.181" (4.60mm) row spacing define the mating footprint. That's a wider pitch than the 0.098" (2.50mm) on the single-row 1-1376477-6 sibling — the 176280-9 suits power distribution where wider traces and higher current per circuit are needed.
No — the housing ships with contacts not included.
The pitch is 0.156" (3.96mm) with a row spacing of 0.181" (4.60mm).
