TE Connectivity AMP Connectors 176282-2 — Connector Housings

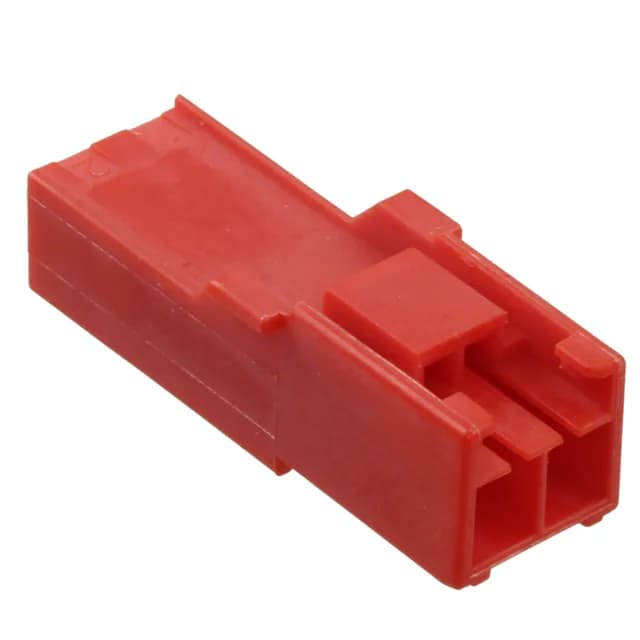

TE 176282-2 Universal Power Receptacle Housing, 2 Pos

MPN176282-2
Active

TE Connectivity Universal Power receptacle housing, 176282-2, 2 circuits, 1 row, 0.156" (3.96mm) pitch, red PA66, latch lock, crimp, free hanging, contacts not included.

$0.3200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesUniversal Power
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

176282-2 specifications
ParameterValue
SeriesUniversal Power
TypeTab
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-30°C ~ 105°C
ColorRed
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.156\" (3.96mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions2

Product details

The 176282-2: It is a free-hanging (in-line) housing with a latch-lock fastening system, moulded in red polyamide (PA66) rated for an operating range of -30°C to 105°C.

What mates and what contacts fit

The 176282-2 receptacle mates with the matching Universal Power header (male pin) housing of the same 0.156" pitch and 2-position count — the header is the board-mounted or in-line plug half. For the contacts, this housing accepts TE's Universal Power crimp tab terminals (typically the 0.031" x 0.062" tab size, part numbers in the 1-xxxxxx-x series for 18-22 AWG wire; confirm wire range from the terminal datasheet).

Frequently asked questions

What contacts are compatible with 176282-2?

The 176282-2 accepts TE Universal Power tab-type crimp terminals — typically the 0.031" x 0.062" tab size for 18-22 AWG wire. The contacts are not included with the housing; order them separately using the correct terminal part number for your wire gauge.

What is the mating connector for 176282-2?

The mating half is a TE Universal Power header of the same 0.156" pitch and 2-position count — a male pin housing or board-mounted header that locks into the receptacle's latch lock.

Is 176282-2 RoHS compliant?

Yes, the 176282-2 is listed as ROHS3 Compliant.

Where can I buy 176282-2?

The 176282-2 is available through independent distribution.
