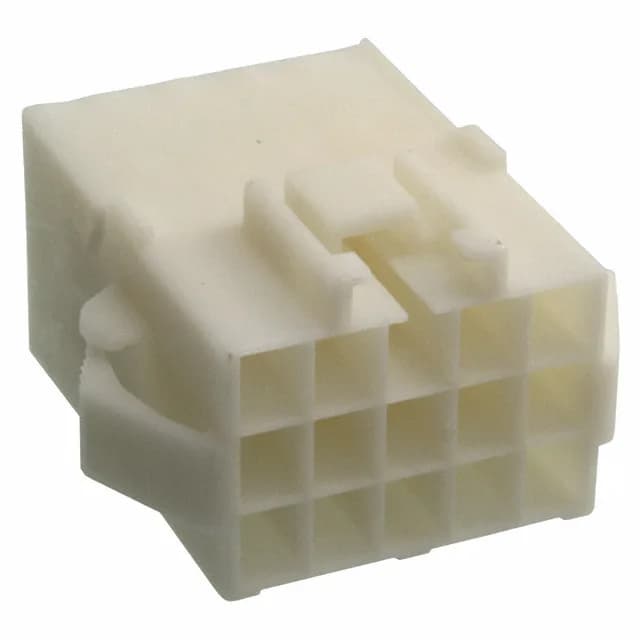

TE Connectivity Universal Power receptacle housing, 176300-1, 15 positions, 3 rows, 0.156" (3.96mm) pitch, panel mount snap-in, locking ramp, natural PA66, crimp termination.
| Parameter | Value |
|---|---|
| Series | Universal Power |
| Type | Tab |
| Mounting | Panel Mount, Snap-In |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Operating temperature | -30°C ~ 105°C |
| Color | Natural |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.156\" (3.96mm) |
| Package | Bulk |
| Row spacing | 0.181\" (4.60mm) |
| Rows | 3 |
| Contact termination | Crimp |
| Positions | 15 |
The contact termination is crimp, which means the housing is loaded with pre-crimped wires before assembly. The mating header is the corresponding Universal Power pin header (same series, 3-row, 3.96 mm pitch) that engages the locking ramp. The 3-row layout with a 4.60 mm row spacing gives a wider footprint than a 2-row equivalent, so the panel cutout and the header's board footprint need to match that row spacing.
The 176300-1 is sourced to order through independent distribution.
The 176300-1 accepts tab-type crimp contacts. The contacts are not included with the housing, so a separate terminal order is required. The exact TE terminal part number depends on the wire gauge; consult the Universal Power series application drawing for the approved contact range.
The header must have a locking ramp feature to engage the housing's latch.
Yes, the 176300-1 is RoHS compliant.
