12-position 3-row housing – panel-mount, contacts sold separately

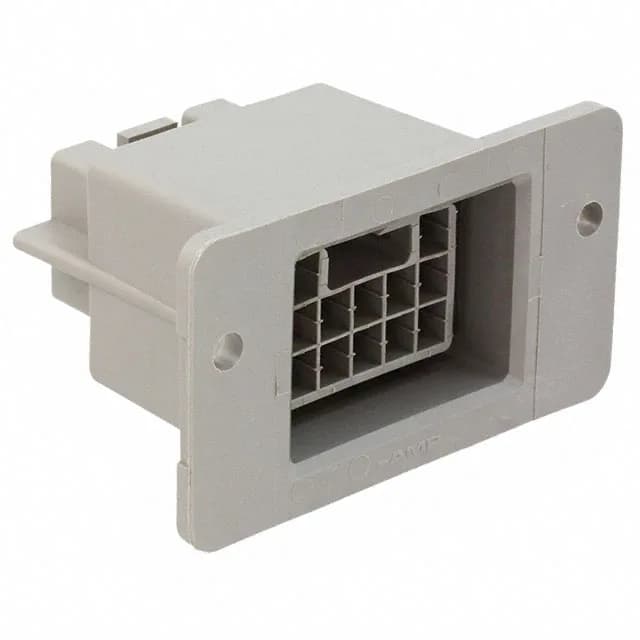

The 176760-1 is a 12-position, 3-row receptacle housing from the TE Amp Lattice series. It accepts male pin contacts (crimp termination) and mounts to a panel. The housing is gray PBT rated for -20°C to 105°C operation. The note on this part is clear: contacts are not included.
Pitch and row spacing – 3.96 mm / 4.60 mm
Pitch is 0.156" (3.96 mm) between positions in a row, with a row-to-row spacing of 0.181" (4.60 mm). That 4.60 mm row gap is tighter than the 10.16 mm spacing on the 4-position 1-2069332-1 sibling, so the 176760-1 packs more circuits per panel area.
