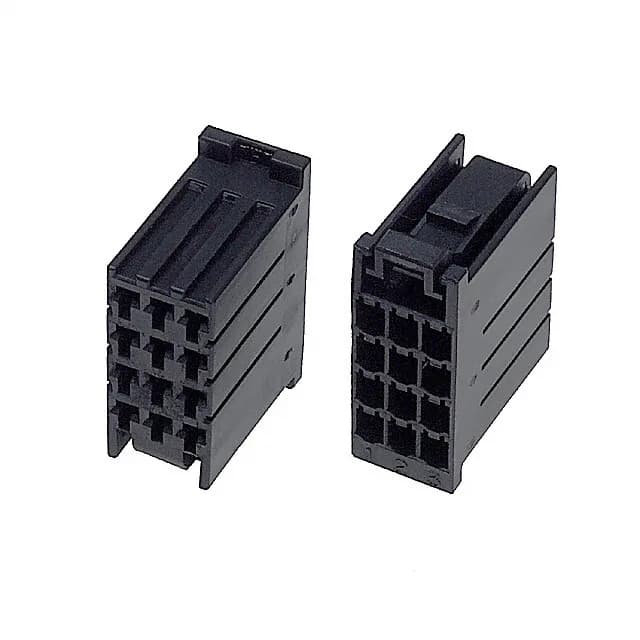

TE Connectivity Dynamic D-3400 receptacle housing, 178214-1, 12 positions, 4 rows, 0.150" (3.81mm) pitch, 0.200" (5.08mm) row spacing, free-hanging in-line, crimp termination, black thermoplastic polyester glass-filled housing, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3400 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Row spacing | 0.200\" (5.08mm) |
| Rows | 4 |
| Contact termination | Crimp |
| Positions | 12 |
This housing ships empty. The free-hanging in-line mount suits harness builds where the connector is not board-mounted; the glass-filled thermoplastic polyester housing provides the flame rating and dimensional stability expected in equipment inside an enclosure.
No. The listing explicitly notes contacts are not included. You must order the matching Dynamic D-3400 female crimp socket terminal separately.
This part is quoted to order.
