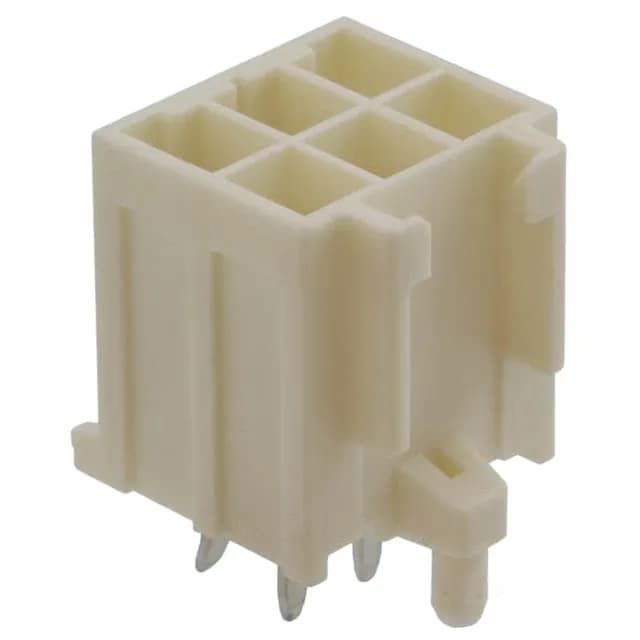

179841-1 TE Power Double Lock Header 6 Pos 3.96mm

MPN179841-1
Active

TE Connectivity AMP Connectors Power Double Lock header, 179841-1, 6 positions, 3.96 mm pitch, shrouded - 4 wall, locking ramp, through hole, kinked pin solder termination, natural insulation, UL94 V-0.

$2.4100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 179841-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesPower Double Lock
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

179841-1 key specifications
ParameterValue
SeriesPower Double Lock
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Current ratingVaries by Wire Gauge
Operating temperature-30°C~105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.575\" (14.60mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-0

All specifications

179841-1 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows2
Pitch0.156\" (3.96mm)
Positions6
Row spacing - mating0.181\" (4.60mm)
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingTin

Product details

Board Layout Fit: Pitch, Positions, and Footprint

The 179841-1: The 3.96 mm pitch and 6 positions (dual-row, 2 rows) set the board footprint. The 0.150" (3.81 mm) post length and 0.575" (14.60 mm) insulation height define the z-height budget above the board. The row spacing of 0.181" (4.60 mm) determines the keep-out between the two rows of plated through holes.

Mating and Locking: Vibration-Resistant Connection

Available in tray packaging.

Environmental and Compliance Ratings

For a given wire gauge, consult the TE Power Double Lock application note for the derating curve.

Frequently asked questions

What is the pitch and number of positions of 179841-1?

The 179841-1 has a 3.96 mm pitch and 6 positions arranged in 2 rows. The row spacing is 0.181" (4.60 mm).

Is 179841-1 RoHS compliant?

Yes, the 179841-1 is ROHS3 compliant.

What is the mating connector for 179841-1?

The 179841-1 mates with a Power Double Lock receptacle housing that accepts tab-type contacts. The specific receptacle part number depends on the circuit count and wire gauge required.
