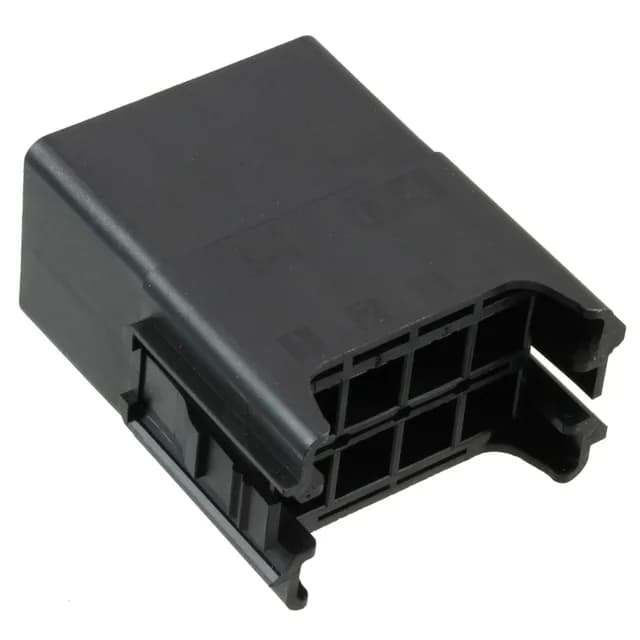

TE Connectivity Dynamic D-4800 series, 1871417-1, 8-position plug housing, 2 rows, 0.319" row spacing, locking ramp, crimp termination, free-hanging, -55 to 105°C, black thermoplastic, contacts not included.
| Parameter | Value |
|---|---|
| Series | Dynamic D-4800 |
| Type | Tab |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Locking Ramp |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Package | Bulk |
| Row spacing | 0.319\" (8.10mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 8 |
It accepts tab-style crimp contacts and uses a locking ramp for secure mating in high-vibration environments such as industrial machinery, automotive under-hood harnesses, and power distribution boxes.
The locking ramp engages the receptacle's latch for a positive, vibration-resistant connection. The free-hanging (in-line) mounting allows the plug to be used as a cable-to-cable or cable-to-panel interconnect without a PCB footprint.
The 1871417-1 is available to order through independent distribution. Submit an RFQ for current pricing and lead time — availability is confirmed at quote time.
No, the listing explicitly notes that contacts are not included. You must order the Dynamic D-4800 tab crimp terminals separately to complete the connector assembly.
This plug housing mates with the matching Dynamic D-4800 receptacle housing. The locking ramp on the plug engages the receptacle's latch for a secure, vibration-resistant connection.
