TE Connectivity AMP Connectors Dynamic D-3200 series, Board to Board or Cable, 5 Positions, 5.08mm Pitch, Through Hole, Gold Mating, 30.0µin (0.76µm), Board Lock, Shrouded - 4 Wall, UL94 V-0, Active
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Mated stacking heights | 31.00mm ~ 32.50mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |

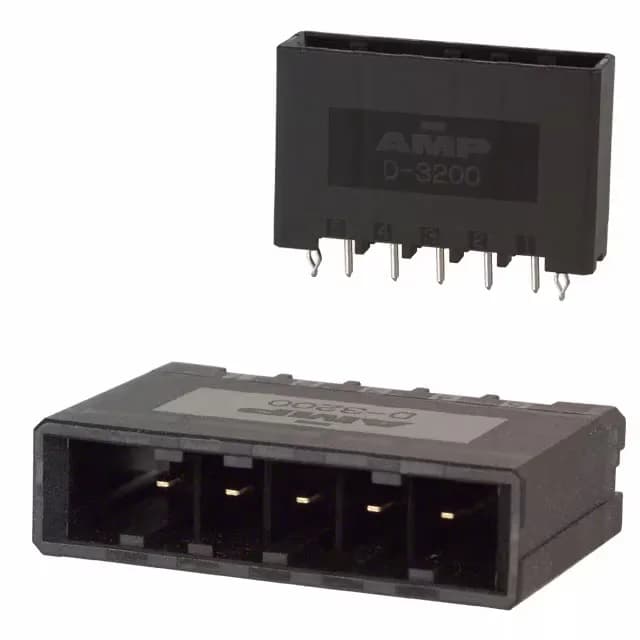

The 2-316132-3: This is a single-row, 5-position header from TE's Dynamic D-3200 series, pitched at 5.08mm.
The mated stacking height range of 31.00mm to 32.50mm accommodates board-to-board or cable-to-board configurations.
The mating pitch is 0.200" (5.08mm). That's the center-to-center distance between adjacent pins.
Yes, it is a shrouded header with a 4-wall design that protects the contacts and prevents mis-mating during blind mate.
Availability and current pricing confirmed at quote time.
