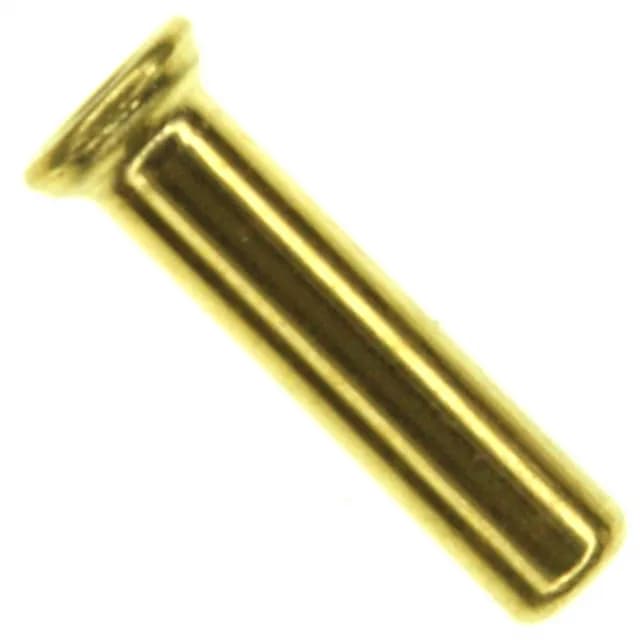

TE Connectivity AMP 2-332095-1, Series 1 PCB Pin Socket, closed bottom, solder termination, gold 30.0µin, accepts 0.013" to 0.020" pin diameter, socket depth 0.165", overall length 0.178".
| Parameter | Value |
|---|---|
| Series | 1 |
| Tail type | No Tail |
| Mounting hole diameter | 0.041\" (1.04mm) |
| Operating temperature | -65°C ~ 126°C |
| Socket depth | 0.165\" (4.19mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Features | Closed Bottom |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.059\" (1.50mm) |
| Length - overall | 0.178\" (4.52mm) |
| Accepts pin diameter | 0.013\" ~ 0.020\" (0.33mm ~ 0.51mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
The 2-332095-1 is a single-circuit PCB pin receptacle from TE Connectivity's Series 1 family, designed to accept mating pins with a diameter range of 0.013" to 0.020" (0.33mm to 0.51mm). Its closed-bottom construction prevents solder from wicking into the contact barrel during wave soldering, which keeps the pin entry clear for reliable insertion.
RoHS compliant per current directive; bulk packaging is standard.
It accepts pin diameters from 0.013" to 0.020" (0.33mm to 0.51mm).
Yes, it is RoHS Compliant.
Socket depth is 0.165" (4.19mm); overall length is 0.178" (4.52mm).
