TE Connectivity AMP Connectors 2-641215-0 — Pin Headers

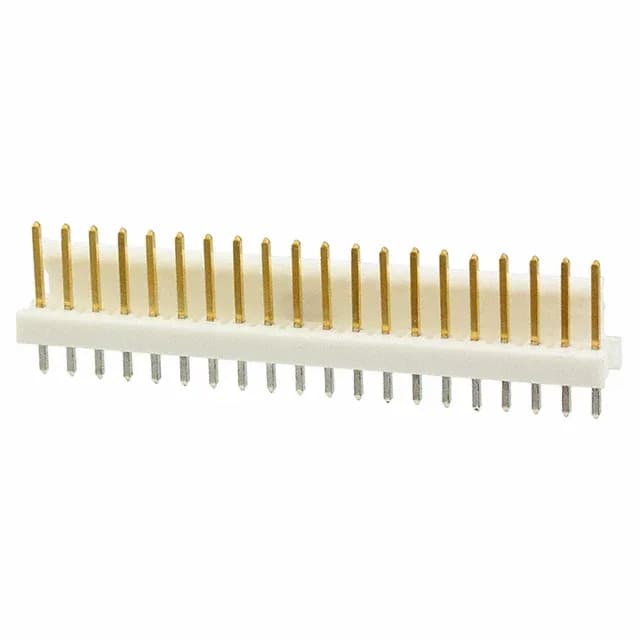

2-641215-0 TE Connectivity MTA-100 Header, 20 Pos

MPN2-641215-0
Active

TE Connectivity AMP Connectors MTA-100 series, 2-641215-0: vertical shrouded header, 20 positions, single row, 0.100" (2.54mm) pitch, through-hole solder termination, gold-plated mating contacts, friction lock, UL94 V-0 thermoplastic housing, natural color.

$8.8900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTA-100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-641215-0 key specifications
ParameterValue
SeriesMTA-100
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.305\" (7.75mm)
Insulation materialThermoplastic

All specifications

2-641215-0 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions20
Contact finish - postTin
Contact length - post0.140\" (3.56mm)
Overall contact length0.535\" (13.59mm)
Contact finish - matingGold
Contact length - mating0.295\" (7.49mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-mount half for MTA-100 wire-to-board harness

The 2-641215-0: This 20-position vertical header is the board-side anchor for a single-row MTA-100 wire-to-board connection. In a field-service or test fixture where the connector sees dozens of cycles per year, that plating grade gives decades of reliable contact resistance.

The UL94 V-0 thermoplastic housing holds its mechanical properties across that range, so the connector can live inside an industrial cabinet or outdoor telecom enclosure without flame risk.
