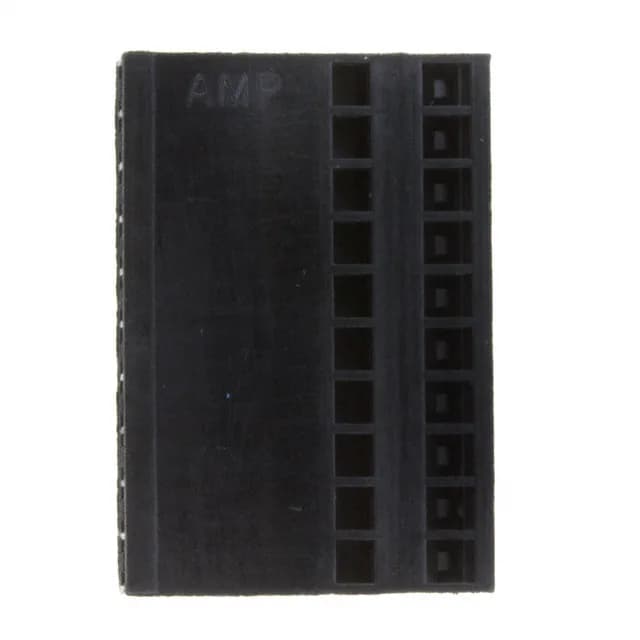

TE Connectivity AMPMODU receptacle housing, 2-87175-2, 10 positions, 1 row, 0.100" (2.54mm) pitch, free-hanging, crimp termination, black polyester housing, contacts not included.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -65°C ~ 105°C |
| Color | Black |
| Insulation material | Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 10 |
The 2-87175-2: It is a free-hanging (in-line) housing designed for crimp-terminated female socket contacts — the housing itself is the wire-side half that mates with a matching pin header. This is the housing only; contacts are ordered separately.
This housing accepts AMPMODU female socket contacts (crimp termination). The mating half is a 10-position, 0.100" pitch AMPMODU pin header.
No, the 2-87175-2 is a receptacle housing only — contacts are not included and must be ordered separately as AMPMODU female socket crimp terminals.
