TE Connectivity AMP Connectors 2-965261-1 — Connector Housings

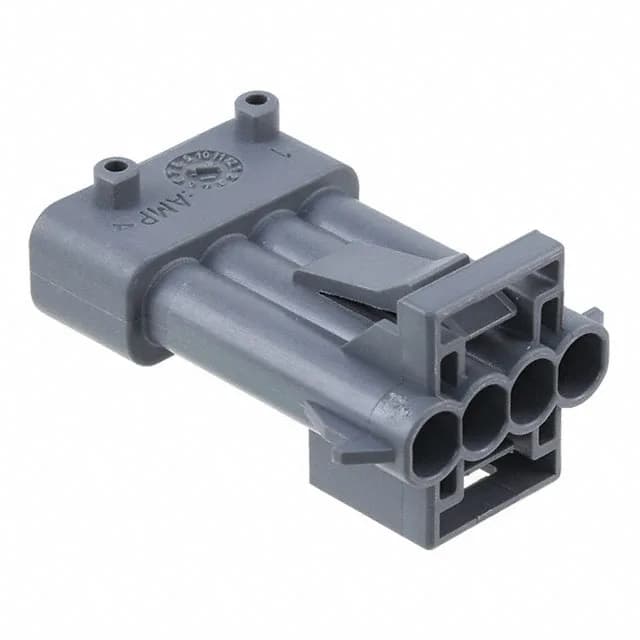

TE Junior Timer 2-965261-1, 4-Pos Plug Housing, 5.00mm

MPN2-965261-1
Active

TE Connectivity Junior Timer series, 2-965261-1, 4-position plug housing, 5.00mm pitch, 1 row, free-hanging (in-line), locking ramp, crimp termination, gray PBT housing, contacts not included.

$0.8000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-965261-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesJunior Timer
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-965261-1 specifications
ParameterValue
SeriesJunior Timer
TypeTab
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLocking Ramp
Operating temperature-40°C ~ 120°C
ColorGray
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.197\" (5.00mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions4

Product details

Housing Identity and Harness Fit

The 2-965261-1: It uses a 5.00 mm pitch, which spaces the terminals wide enough for easy crimping and assembly with 20–17 AWG wire typical of power and signal circuits in automotive and industrial control panels. The housing is a plug — it accepts tab-style crimp contacts and mates with the matching Junior Timer receptacle housing.

The correct terminal depends on the wire gauge and current requirement — TE offers tin-plated and gold-plated versions for the Junior Timer series, typically rated between 10 A and 20 A per circuit depending on the contact size. Order the terminals separately to complete the connector assembly.

Frequently asked questions

Where can I buy 2-965261-1 and how is it quoted?

Submit an RFQ for your BOM quantity to get a firm position.

Is 2-965261-1 a female or male connector housing?

It is a plug housing that accepts tab (male) contacts, making it the male half of the connection. It mates with a Junior Timer receptacle housing that accepts female socket contacts.

Which mating contacts are compatible with 2-965261-1?

This housing accepts Junior Timer tab terminals, which are crimp-style male contacts. The exact terminal part number depends on the wire gauge and current rating — TE offers several options in the Junior Timer contact family. Contacts must be ordered separately.

Does 2-965261-1 have a locking ramp for vibration resistance?

Yes, the housing features a locking ramp fastening type that engages with the mating receptacle. This provides positive retention in vibration-prone environments such as automotive engine compartments or industrial machinery.
