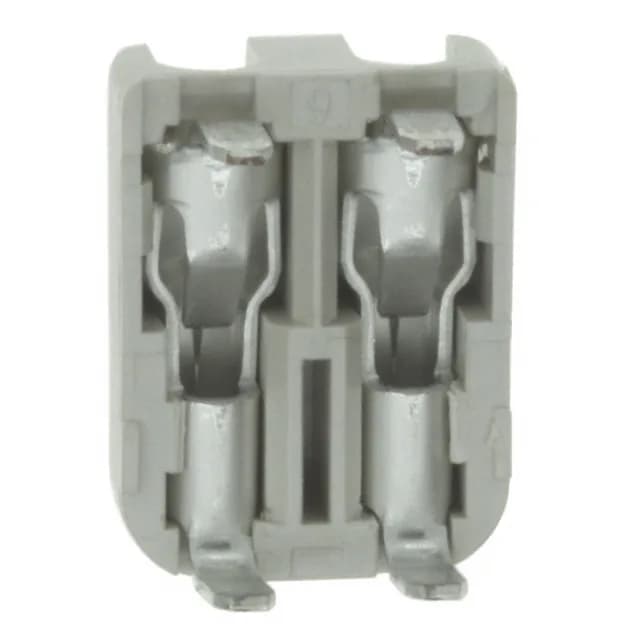

TE Connectivity, Poke-In Wire Receptacle, 2008106-1, 2 Positions, 0.157" (4.00mm) Pitch, 4A, 250V, Through Hole, Right Angle, Solder, Tin
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Poke-In Wire |
| Voltage rating | 250V |
| Current rating | 4A |
| Wire gauge | 18 AWG, 20 AWG, 22 AWG |
| Operating temperature | -40°C ~ 105°C |
| Housing color | White |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP) |
| Pitch | 0.157\" (4.00mm) |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Contact finish | Tin |
| Positions | 2 |
The stripped wire inserts directly into the contact beam, which is held open by the insertion tool and closes to grip the conductor. The 0.157" (4.00mm) pitch gives enough room between circuits for the poke-in mechanism and for 250V creepage.
This receptacle accepts 18 AWG, 20 AWG, and 22 AWG solid or stranded wire. The poke-in contact is tin-plated copper alloy, adequate for the rated 4A per circuit in indoor, low-cycle applications.
The 2008106-1 poke-in receptacle accepts 18 AWG, 20 AWG, and 22 AWG solid or stranded wire.
The 2008106-1 has a 0.157" (4.00mm) pitch between the two positions.
