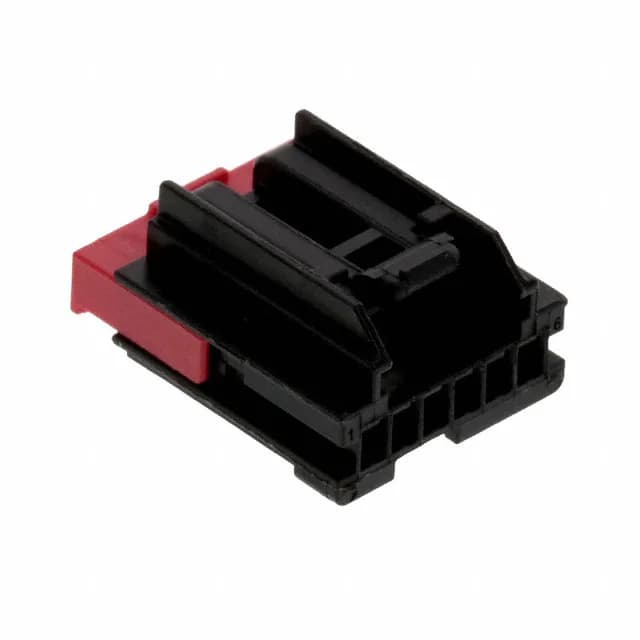

TE Generation Y receptacle housing, 6 positions, 1 row, 0.100" (2.54mm) pitch, crimp termination, latch holder, free hanging, black, contacts not included.
| Parameter | Value |
|---|---|
| Series | Generation Y |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 100°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 6 |
The crimp termination allows the harness builder to terminate wires to the correct length before inserting them into the housing, which simplifies rework: a bad crimp means replacing one terminal, not the whole assembly. The latch holder doubles as a terminal position assurance (TPA) feature — it locks the contacts in place after insertion, preventing push-back during mating or vibration.
The 2035363-3 accepts crimp female socket contacts, but the specific terminal part number is not listed in the available specs. Contacts are not included with this housing.
The latch holder on this receptacle engages with a corresponding latch lock on the plug. Confirm the exact plug part number against your BOM before ordering.
