TE Connectivity AMP Connectors 207304-1 — Connector Housings

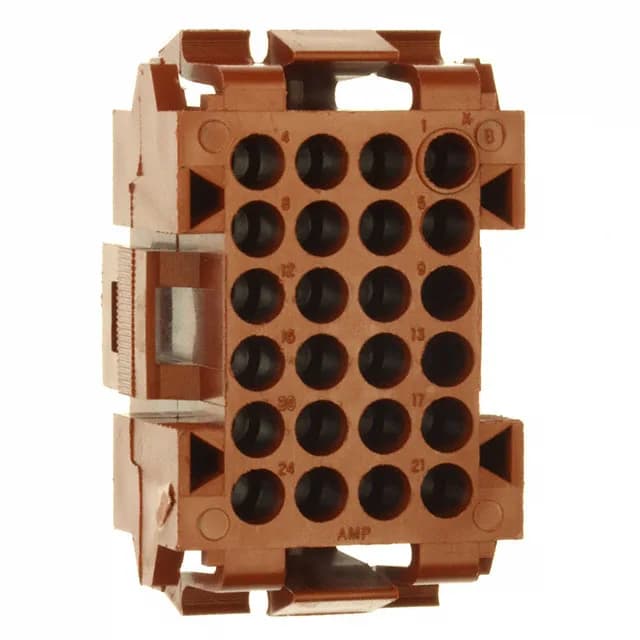

TE Connectivity 207304-1 Metrimate Plug Housing, 24 Pos

MPN207304-1
Active

TE Connectivity Metrimate series plug housing, 207304-1, 24 positions, 4 rows, 0.197" (5.00mm) pitch, free-hanging (in-line), locking ramp, black thermoplastic, crimp termination, -55°C to 130°C.

$4.8300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 207304-1 datasheet (PDF)
RoHSRoHS Compliant
SeriesMetrimate
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

207304-1 specifications
ParameterValue
SeriesMetrimate
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLocking Ramp
Operating temperature-55°C ~ 130°C
ColorBlack
Insulation materialThermoplastic
NoteContacts Not Included
Pitch0.197\" (5.00mm)
PackageBulk
Row spacing0.197\" (5.00mm)
Rows4
Contact terminationCrimp and Solder
Positions24

Product details

24-Circuit Metrimate Plug Housing, 4-Row, 5.00 mm Pitch

The TE Connectivity 207304-1 is a 24-position plug housing from the Metrimate series, arranged in four rows on a 0.197" (5.00 mm) pitch.

The four-row arrangement packs 24 circuits into a single housing body, which simplifies harness routing compared to using multiple smaller connectors. For the harness builder, this means one crimp operation per contact, one housing to seat, and one locking ramp to verify — fewer points of failure than a multi-connector bundle.

For field service, the free-hanging design allows the plug to be replaced without desoldering — just re-crimp new contacts into a fresh housing.

Frequently asked questions

Does the 207304-1 include contacts?

No, the 207304-1 is a plug housing only — contacts are not included and must be ordered separately as Metrimate crimp socket terminals.

What is the mating connector for 207304-1?

The mating half is a Metrimate pin header with a 0.197" (5.00 mm) pitch, 4-row configuration, and a locking ramp catch that engages the plug's locking ramp.

What is the pitch of the 207304-1?

The pitch is 0.197" (5.00 mm), with the same spacing between rows.

Is the 207304-1 RoHS compliant?

Yes, the 207304-1 is RoHS compliant.
