TE Connectivity AMP Connectors 207376-1 — Connector Housings

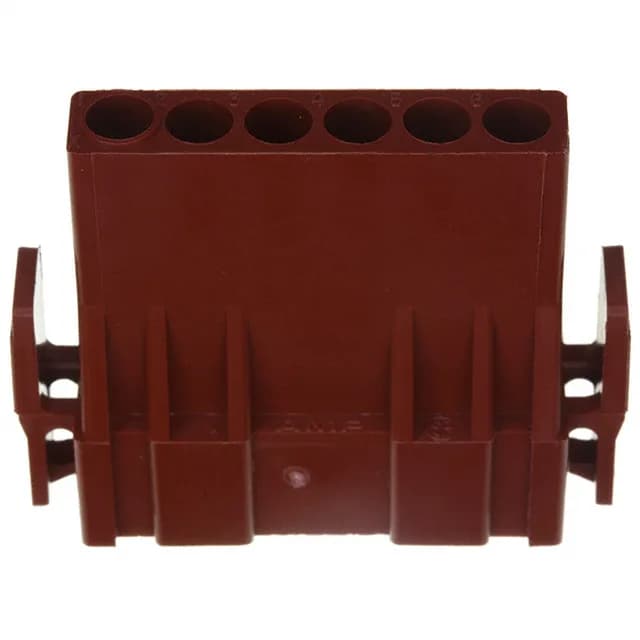

TE Connectivity 207376-1 Metrimate Receptacle Housing, 6 Pos

MPN207376-1
Active

TE Connectivity Metrimate receptacle housing, 207376-1, 6 positions, 1 row, 5.00mm pitch, latch lock, free hanging, crimp termination, black or red, -55°C to 130°C.

$3.9100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMetrimate
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

207376-1 specifications
ParameterValue
SeriesMetrimate
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-55°C ~ 130°C
ColorBlack or Red
Insulation materialThermoplastic
NoteContacts Not Included
Pitch0.197\" (5.00mm)
PackageBulk
Rows1
Contact terminationCrimp and Solder
Positions6

Product details

Housing First, Contacts Second

It is a free-hanging (in-line) shell that accepts male pin contacts via crimp or solder termination — but the contacts themselves are not included in this order.

The Contacts Question

Contacts not included. Source matching male pin terminals separately.

Mating Half and Locking

The single-row 6-position layout means the mating plug will also be a 6-position, 5.00mm pitch, single-row shell. The latch lock is audible on full engagement; if you don't hear it click, the terminals aren't fully seated and the connection can back out under cable strain.

What the 5.00mm Pitch and Temperature Range Buy You

The 5.00mm pitch is wider than the typical 2.54mm or 3.00mm signal connector pitch — it gives more creepage distance between adjacent circuits, which matters when the harness carries moderate voltage or power. The latch lock is the primary retention — there's no secondary locking mechanism, so the crimp terminals must be fully seated into the housing cavities or they'll push back during mating.

Frequently asked questions

Does 207376-1 come with contacts?

No. The listing explicitly states contacts not included. You order the housing shell separately and source the matching male pin crimp terminals for the Metrimate series.

What is the mating connector for 207376-1?

This receptacle mates with a Metrimate plug housing — a 6-position, single-row, 5.00mm pitch plug with male pin contacts. The latch lock on the receptacle engages with the locking ramp on the plug.
