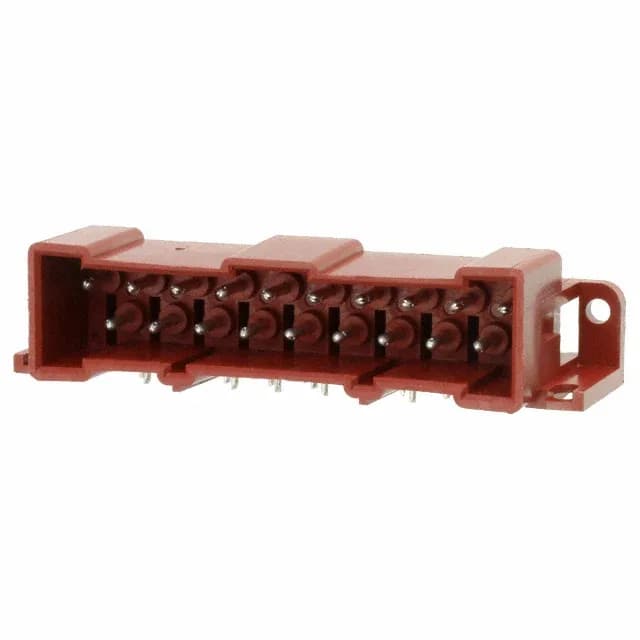

TE Connectivity AMP Connectors Metrimate 208099-3, right-angle through-hole header, 19 positions loaded all, 2 rows, 0.250" (6.35mm) pitch, 7.5A per circuit, 600V, tin-plated brass contacts, shrouded 4-wall, latch holder, UL94 V-0 red nylon, -55°C to 130°C.
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 130°C |
| Contact material | Brass |
| Insulation color | Red |
| Insulation height | 0.750\" (19.05mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.250\" (6.35mm) |
| Positions | 19 |
| Row spacing - mating | 0.200\" (5.08mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The 0.250" (6.35mm) pitch and 0.200" (5.08mm) row spacing are standard Metrimate dimensions, making this header a direct fit for matching Metrimate receptacles.
Rated 7.5A per circuit at 600V, the 208099-3 handles moderate power distribution alongside signal lines in a single connector.
The mating pitch is 0.250" (6.35mm) with a row spacing of 0.200" (5.08mm).
Yes, the 208099-3 is ROHS3 compliant.
The operating temperature range is -55°C to 130°C.
