TE Connectivity AMP Connectors 2109441-4 — Connector Housings

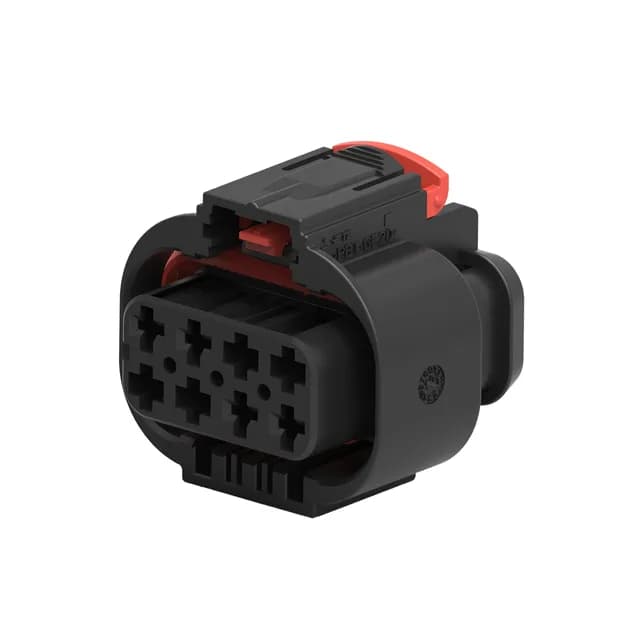

TE MCP 2109441-4, 8-Pos Receptacle, 6mm Pitch, Black

MPN2109441-4
Active

TE Connectivity MCP 2.8 receptacle, 2109441-4, 8 positions, 2 rows, 0.236" (6.00mm) pitch, black PBT housing, crimp termination, free hanging, latch holder, CPA and TPA features.

$2.4300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2109441-4 datasheet (PDF)
SeriesMCP
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2109441-4 specifications
ParameterValue
SeriesMCP
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 120°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
Pitch0.236\" (6.00mm)
PackageTray
FeaturesConnector Position Assurance (CPA), Terminal Position Assurance (TPA)
Row spacing0.236\" (6.00mm)
Rows2
Contact terminationCrimp
Positions8

Product details

MCP 2.8 Receptacle, 8 Positions, 6.00 mm Pitch

The TE Connectivity MCP 2.8 receptacle 2109441-4 is an 8-position, 2-row, free-hanging (in-line) female socket housing designed for crimp termination. The black PBT, glass-filled insulation carries a -40°C to 120°C operating range, suited for underhood or enclosure environments where temperature cycling is a given. The housing includes Connector Position Assurance (CPA) and Terminal Position Assurance (TPA) features — the TPA locks each crimped terminal into its cavity before the connector is mated, and the CPA prevents accidental unlatching once the plug and receptacle are joined. These are standard on MCP 2.8 connectors for vibration-resistant assemblies where a loose terminal or back-out would cause an intermittent open.

This receptacle mates with the MCP 2.8 plug header (the male counterpart with latch holder).

Frequently asked questions

Where can I buy 2109441-4 available via RFQ confirmation?

2109441-4 is an active TE Connectivity MCP 2.8 receptacle.

What is the mating connector for 2109441-4?

The mating connector is the MCP 2.8 plug header with latch holder — the male counterpart that accepts the same 6.00 mm pitch and row spacing. The plug header is ordered separately.

Does 2109441-4 include CPA and TPA?

Yes, the housing includes both Connector Position Assurance (CPA) and Terminal Position Assurance (TPA) features. The TPA locks each crimped terminal into its cavity; the CPA prevents accidental unlatching after mating.
