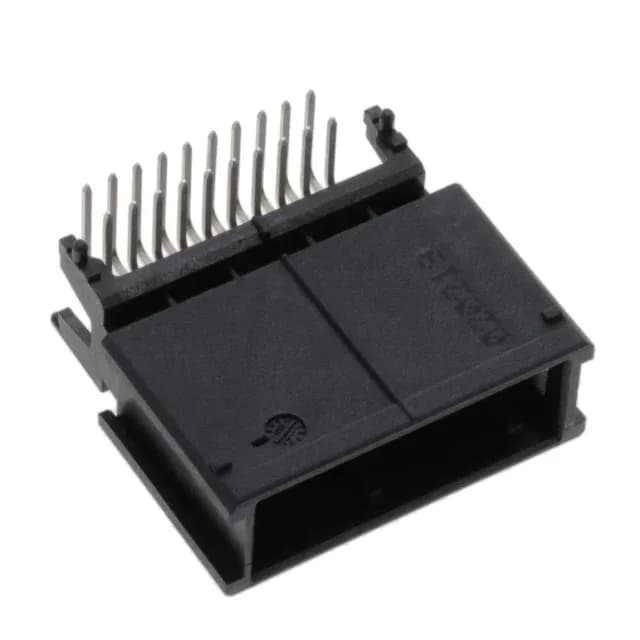

TE Connectivity AMP Connectors Nano Micro Quadlok header, 2208165-1, 20 positions, 2 rows, 1.80 mm pitch, right-angle, shrouded 4-wall, latch holder, tin contacts, active
| Parameter | Value |
|---|---|
| Series | Nano Micro Quadlok |
| Type | Male Pin |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.354\" (9.00mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.071\" (1.80mm) |
| Positions | 20 |
| Row spacing - mating | 0.059\" (1.50mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.093\" (2.35mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.256\" (6.50mm) |
At 1.80 mm pitch, this header fits a denser board layout. The 20 positions are all loaded, so you get the full circuit count without blanked positions.
This header mates with the Nano Micro Quadlok cable-side receptacle (search the series for the matching 20-position housing and crimp terminals).
