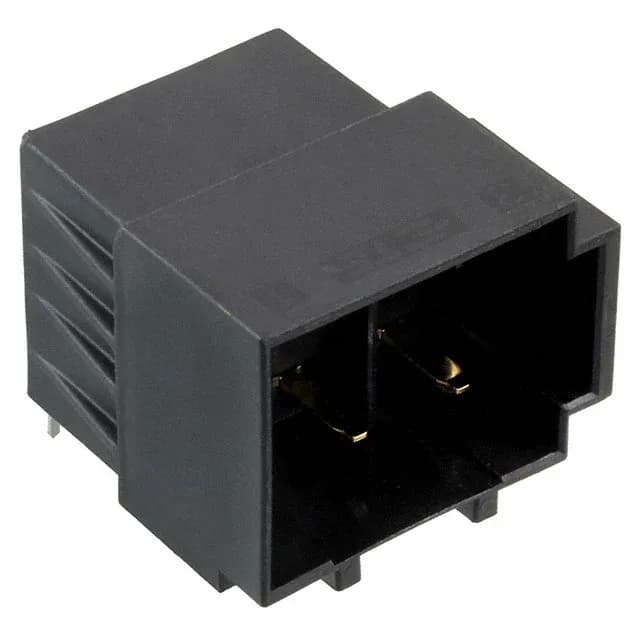

TE Connectivity AMP Connectors, Dynamic D-3950 series, header, 6 circuits, 2 rows, 7.50 mm pitch, right-angle through-hole, shrouded 4-wall, board lock, gold-plated mating contacts, UL94 V-0, RoHS compliant.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3950 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.803\" (20.40mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.295\" (7.50mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 2229806-1: The 7.50 mm pitch sets the board footprint and the per-contact current ceiling — at the rated 600 V, the spacing keeps creepage well within the housing material limits for industrial power distribution. Six circuits in a 2-row layout, all positions loaded — the pinout matches the Dynamic D-3950 receptacle with the same 7.50 mm centerline.
RoHS compliant per.
The 2229806-1 uses a 7.50 mm mating pitch, which sets the board footprint and the mating half compatibility.
Yes, the 2229806-1 is RoHS compliant.
Yes, the header includes board locks for mechanical retention during soldering and resistance to cable strain.
