TE Connectivity AMP Connectors 2236454-1 — Pin Headers

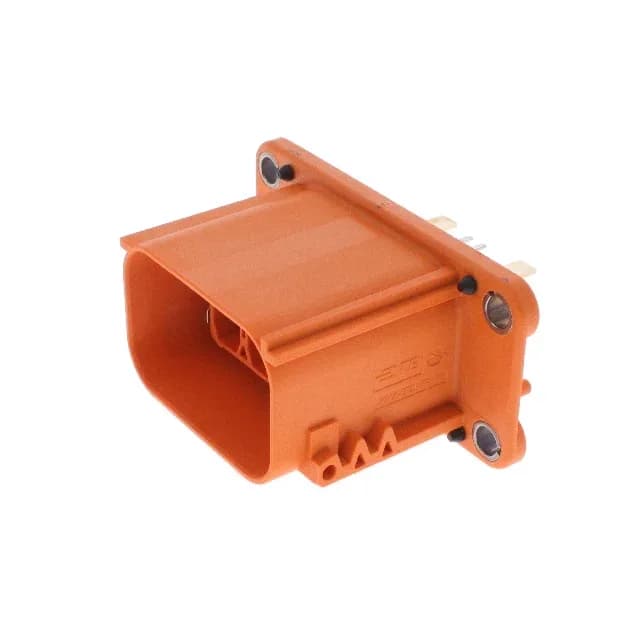

2236454-1 TE Connectivity HVA 630 Header 7 Pos

MPN2236454-1
Active

TE Connectivity AMP Connectors HVA 630 series header, 2236454-1, board-to-cable/wire, 7 positions, 2 rows, shrouded 4-wall, silver-plated male blade/pin contacts, solder termination, latch holder, -40°C to 140°C, bulk.

$31.8100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHVA 630
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2236454-1 key specifications
ParameterValue
SeriesHVA 630
TypeMale Blade; Male Pin
MountingPanel Mount, Through Hole
Connector typeHeader
Fastening typeLatch Holder
Operating temperature-40°C ~ 140°C
Contact materialCopper Zinc
Insulation colorOrange
Insulation height1.795\" (45.60mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
StyleBoard to Cable/Wire
PackageBulk

All specifications

2236454-1 additional specifications
ParameterValue
FeaturesBoard Guide, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Rows2
Positions7
Contact finish - postSilver
Contact finish - matingSilver

Product details

7-position, 2-row header for HVA 630 power interconnects

The 2236454-1 is a board-to-cable/wire header from TE's HVA 630 series, delivering 7 circuits in a 2-row layout.

Temperature range and mounting flexibility

Rated for -40°C to 140°C, the header handles under-hood thermal cycling and high-ambient enclosures without derating the housing material (PA66, glass-filled). Mounting options include panel mount and through-hole solder termination, with a board guide and mounting flange to align and secure the connector during assembly.

Frequently asked questions

Where can I buy 2236454-1 and how do I get a price?

The 2236454-1 is an active TE Connectivity part. We source it per RFQ — submit a request with your target quantity, and we'll confirm current pricing and lead time. No stock-holding claim; availability is verified at quote.

What connector mates with 2236454-1?

This is a board-to-cable/wire header. The mating half is a cable-side receptacle from the HVA 630 series that accepts the male blade and pin contacts. Confirm the specific receptacle part number against your harness design.
