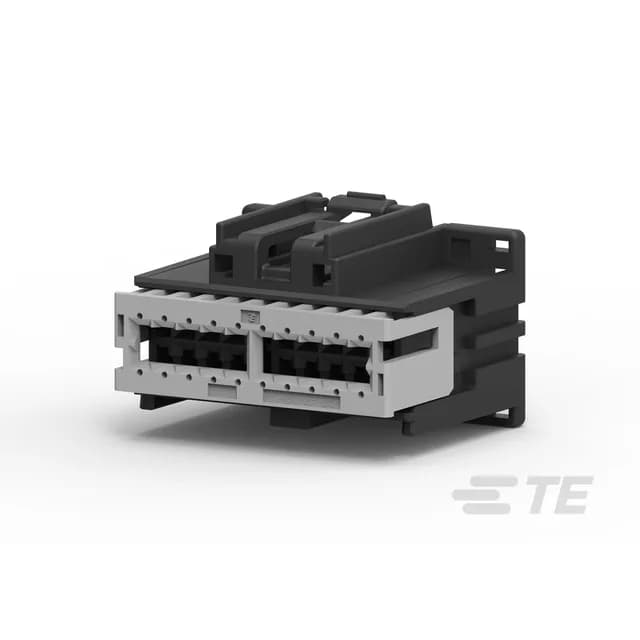

TE 2288276-1 Generation Y Receptacle, 20 Pos, 0.100" Pitch

MPN2288276-1
Active

TE Generation Y receptacle, 2288276-1, 20 circuits, 2 rows, 0.100" (2.54mm) pitch, 0.167" (4.24mm) row spacing, crimp termination, free-hanging, black PA66 housing, latch lock, CPA and TPA.

$3.3100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2288276-1 datasheet (PDF)
SeriesGeneration Y
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2288276-1 specifications
ParameterValue
SeriesGeneration Y
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-40°C ~ 100°C
ColorBlack
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesConnector Position Assurance (CPA), Terminal Position Assurance (TPA)
Row spacing0.167\" (4.24mm)
Rows2
Contact terminationCrimp
Positions20

Product details

20-Position Generation Y Receptacle for USCAR Harness Applications

The black glass-filled PA66 housing carries both Connector Position Assurance (CPA) and Terminal Position Assurance (TPA) features — these are the secondary locks that prevent partial mate and terminal back-out under vibration, which is the main reason this series is specified for underhood and chassis harnesses.

Crimp Termination and Free-Hanging Installation

This receptacle uses crimp termination — the female sockets are loaded into the housing after crimping to the wire, which is the standard build method for high-volume harness production. The TPA feature, a secondary retainer inserted after the terminals, confirms each contact is fully seated and locked into its cavity — a requirement for USCAR-2 and similar high-reliability specs.

Frequently asked questions

Where can I buy 2288276-1?

The 2288276-1 is available to order through independent distribution; it is sourced and quoted against an RFQ.

Does 2288276-1 have Terminal Position Assurance (TPA)?

Yes, the 2288276-1 includes both Connector Position Assurance (CPA) and Terminal Position Assurance (TPA) as standard features, providing secondary locking for the mating interface and individual contact retention.

What is the mating connector for 2288276-1?

The 2288276-1 is a receptacle housing that mates with the corresponding Generation Y header (male pin) connector of the same keying and position count. The specific mating part number depends on the header variant — confirm the key code and circuit count match your harness design.
