Right-Angle MATEnet Header, 2-Position, 1.80 mm Pitch
The header is loaded with all 2 positions, so no blank or dummy pins — every circuit is active. The rectangular contact shape mates with standard MATEnet receptacle terminals.

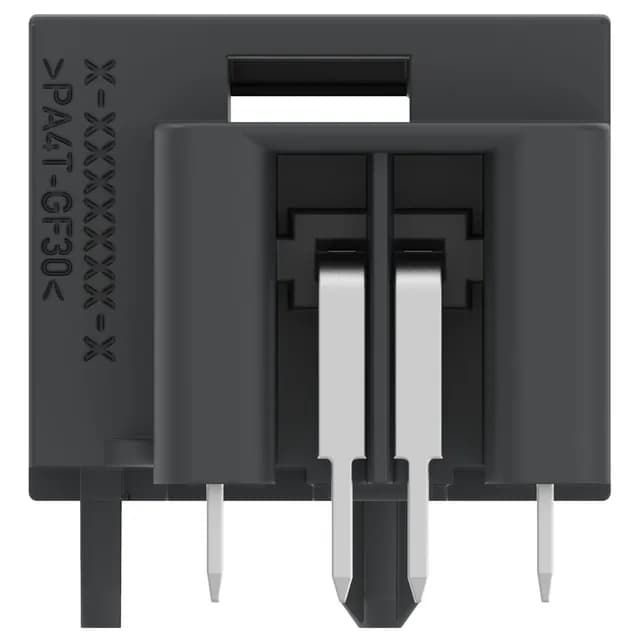

2320201-1 TE MATEnet Header, 1.80mm Pitch, 2 Pos
MPN2320201-1
Active
TE Connectivity AMP Connectors MATEnet series, 2320201-1, 2-position single-row header, 1.80 mm pitch, through hole right angle, shrouded, male pin, tin-plated contacts, 3 A, -40°C to 105°C.
$4.9200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMATEnet
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MATEnet |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.453\" (11.50mm) |
| Insulation material | Polyamide (PA4T), Nylon 4T, Glass Filled |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Box |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.071\" (1.80mm) |
| Positions | 2 |
| Contact length - post | 0.094\" (2.40mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What is the pitch of the 2320201-1 header?
The mating pitch is 0.071" (1.80 mm). This is the center-to-center spacing between adjacent pins, which determines the PCB footprint and the mating receptacle's contact spacing.
Is 2320201-1 RoHS compliant?
Yes, it is ROHS3 compliant, meeting the latest EU RoHS directive.
